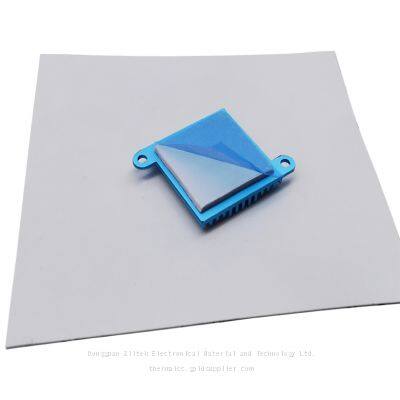

Ultra-Soft Silicone Thermal Conductive Pad for GPS Navigation And Other Portable Devices
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable
partner of you. Let's make your design more perfect!
Product introduction
Ziitek TIF100-25-02F thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.
Feature
> Good thermal conductive: 2.5W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
> RoHS compliant
> UL recognized
> Moldability for complex parts
> Naturally tacky needing no further adhesive coating
Applications
< Automotive electronics
< Set top boxes
< Audio and video components
< IT infrastructure
< GPS navigation and other portable devices
< CD-Rom, DVD-Rom cooling
Typical Properties of TIF100-25-02F
|
| Product Name | TIF100-25-02F Series |
| Colour | Grey |
| Construction & Compostion | Ceramic filled silicone elastomer |
| Specific gravity | 2.45 g/cc
|
| Thickness | 0.5mm~5.0mm |
| Hardness | 60 Shore 00 |
| Dielectric constant@1MHz | 4.3 MHz |
| Continuos Use Temp | -40 to 160℃ |
| Dielectric Breakdown Voltage | >5500 VAC |
| Thermal conductivity | 2.5W/mK |
| Flame Rating | 94-V0 |
Products Thickness:
0.020 inch to 0.200 inch(0.5mm to 5.0mm)
Products Size:
8"*16"(203mm*406mm)
TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge
Contact us：
Mor information, please contact us: sales22@ziitek.com
>>
