Hydraulic CNC Tandem Press Brake Plate Bending Machine Two Benders

Product Description

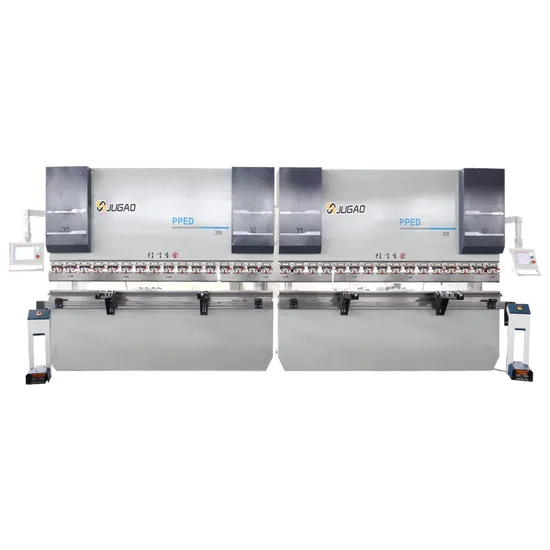

Two 200TON 3200 Hydraulic CNC Tandem Press Brake Plate Bending Machine Two Benders
Two WC67Y/K Series in same specification are choosen as main machine with double motor linkage synchro-device, which may work together to process overlong workpiece or operate separately to increase production efficiency. Defection copensation device is fitted, too. Mechanic and fluid servos with mechanic slider are utilized in synchronous device. The stroke of upper slider and the position of rear apron are regulated quickly by machine and micro-regulated by hand with electronic NC display.
Performance
Tandem Series press brakes allow for the combination of two ERMAK heavy duty press brakes in a synchronised tandem. Typical industries served include earth moving,lighting columns,cranes,aerospace,transport and defence. New intuitive and intelligent Touch PC based control ensures reduces `Art to Part' time and optimises bending results. Multiple operating modes ensure fastest'Art to Part'times. When used in tandem mode both machines are controlled via one Touch control. Each machine in the tandem can also be used independently increasing flexibility. ERMAK heavy duty tooling is available to suit your individual application. Machine has many configurable options at point of order:open height,stroke,throat gap and back gauge. Additional options are available such as:automatic tool changing ,variable vee dies and automated material handling. Technical parameter

Model	Preesure (KN)	Max bending width (mm)	Distance between cylinder	Throat depth	Ram stock	Max open height	Motor (kw)	Max bending thickness X Length (mm)
2WC67Y-300TX6000	6000	12000	5130	710	200	950	2X37	12X12000
2WC67Y-400TX6000	8000	12000	5140	710	250	950	2X37	17X12000
2WC67Y-500TX6000	10000	12000	5150	900	300	1100	2X45	19X12000
2WC67Y-600TX6000	12800	12000	4000	1100	300	1200	2X55	20X12000
2WC67Y-800TX6000	16000	12000	4000	1100	400	1200	4X37	23X12000
2WC67Y-800TX7000	16000	14000	5030	1100	400	1200	4X37	22X14000
2WC67Y-800TX8000	16000	16000	5030	1100	400	1200	4X37	20X16000
2WC67Y-1200TX7000	24000	14000	4500	1600	400	1250	4X45	28X14000
2WC67Y-1200TX7500	24000	15000	5000	1600	400	1250	4X45	27X15000
2WC67Y-1200TX8000	24000	16000	5030	1600	400	1250	4X45	26X16000
2WC67Y-1600TX8000	32000	16000	5210	1600	400	1250	4X55	29X16000
2WC67Y-2000TX8000	40000	16000	5210	1600	400	1250	4X55	32X16000
2WC67Y-2400TX8500	48000	17000	6000	1600	400	1250	4X75	35X17000
