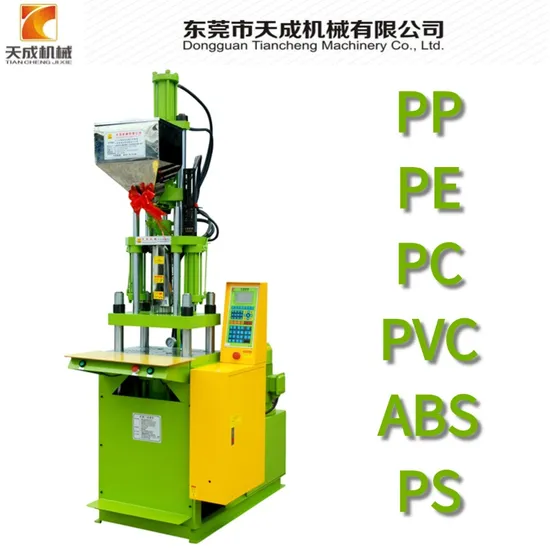

Automatic USB Wire Cable Connector Making Injection Molding Machine

Product Description

Automatic USB Wire Cable Connector Making Injection Molding Machine
1.How to choose injection molding machine?The injection weight should be about 1.2x product's weight; The tie bar space should be bigger than the mold dimension; Contact with us for more information.
2.How to pay?50% deposit T/T in advance, the balance50% payment by T/T before delivery (we accept payment by T/T, L/C etc.)
3.ls that possible for your company to send engineer to install machine for commissioning,even train our workers?Yes, we can send our engineer to your factory for installing, commissioning, training. We have some engineers flying among different countries for after sale service and technical support. As per experience, if everything OK usually 5-15 days is enough. Therefore, before shipment, we need you to prepare invitation letter for visa. However, please be noted that all cost happened for visa,travel, hotel should be paid in advance by customers. In addition, we cannot guarantee each visas successful.
4. If we buy your machines, is there any warranty?Yes, definitely. Totally 12-months warranty after shipment for mechanical parts. We are responsible for broken parts within12-months. We will supply those parts in freeway but the possible transportation cost should be paid by clients.
Product Description
1.machine can be installed with a single mode skateboards,skateboard or alternating dual mode.
2.the low-pressure mold clamping device protection security.
3.the lower mold fixed on the movable mold,insert items for a good positioning of the resistance,and has finished top of the device.
4.temperature control.three-stage.fast,back pressure,screw speed steep-less adjustment for a variety of precision plastic parts molding.
5.the tube can lift,clean and convenient material head,fixed mold easier.
6.in-line screw type injection apparatus.
For choosing proper machine and saving your time, please read below questions carefully and send your inquiry soon , thanks .
1.what material you will use(PP PE or PET ?)
2.weight for plastic product
3.pictures for plastic product (including dimension for plastic product)
4.what output per hour do you need ?
5.Other requirements about the machine you want.
Product Parameters

Brand Name	TianCheng		Style	VERTICAL
Condition	New		Model NO.	TC-250-P
Screw Diameter (MM)	26--30		Max.Hydraulic Pressure(Kg/cm3)	140
Maximum injection Pressure (Kg/cm2)	1325--996		Pump Output (L/min)	30
Theoretical Shot Volume (Cm3)	55--74		Oil Tank Capacity (L)	116
Maximum Shot Weight (G/oz)	50/1.8--66/2.5		Cooling Water Consumption(L/H)	600-800
Injection Rate (Cm3/sec)	45--59		Electric Power (KW)	4
Screw Speed (R/Min)	0--150		Total capacitance (KW)	2
Screw Rate (MM)	106		Total Wattage (KW)	6
Nozzle Retraction Stroke (MM)	150		Machine Specification(M)	1.5*1.05*2.35
Clamping Force (Ton)	25		Weight of Machine (KG)	1100
Opening Force (Ton)	7		Plastic Processed	PP, ABS, FRPP/PVC, PE, ABS/PP, PE/PP
Platen Size (MM)	500*340		After-sales Service Provided	Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Distance Between Tie-Bere (MM)	370*200		After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
minimum Mold Thickness (MM)	60/120		Warranty	1 year
Opening Stroke (MM)	200		Applicable Industries	Manufacturing Plant, Construction works , Energy & Mining, Other
Max-Distance opening mold (MM)	260/320
Max.Mold Size	350*280
Ejector Force (Ton)	1.3
Ejector Stoke (MM)	35

Packaging & Shipping
MULTILINGUAL
Our machine computer language could be programmed into: Chinese, English, Korean, Russian, Arabic, Polish, Thai, Turkish, Spanish and Vietnamese.
This will enable customers to easily use the machine.
Successful transaction

Our Services
1. 24 hours services, the answers to any questions will be replied sooner.
2.Direct factory services, exclusive and unique solution can be provided to you by our professional engineers and staffs teams.
3.Materials suppliers offered ,the contact ways to different kinds of the materials and requirements of your products can be supported here, you can contact them by yourself .
4. After-sales services, engineers available to service machinery overseas; besides, the videos and document of solution will be sent at once.
5.The full and specific set of the subject for your project will be offered for you by free after we get touch with you.
6.12 Months Warranty and spare parts of machine will be offered within 3 days to avoid to waste your production time.
FAQ

FAQ
Q1	Do you have reference project?
A1	We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information,you can go to visit their factory. And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city. Contact our sales people you can get video of our reference running machine
Q2	Do you provide customized service
A2	We can design the machines according your requirements(material ,power,filling type,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q3	What's your guarantee or the warranty of the quality if we buy your machines?
A3	We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q4	How long time for installation?
A4	According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

---
