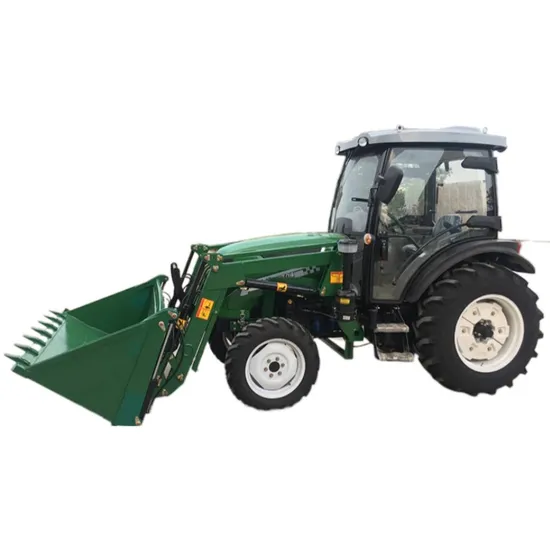

Front End Loader Driven by 50-70HP Tractor 4in 1 Bucket Optional

Product Description

Product Description
Front End Loader can match the Bucket, /Pallet Fork/Log Grab/Bale Grab in front of hydraulic beams, there are kinds of models which for different tractors,such as 25hp/30hp/35hp/40hp/50hp/60hp/70hp/80hp/90hp/100hp/120hp/130hp/150hp.etc.


Product Parameters
Front end loader specifications:

Model:	TZ-3	TZ-4	TZ-8	TZ-10	TZ-12
Tractor power required:	20-30hp	35-50hp	50-70hp	80-90hp	100-130hp
Max dump height:	1800mm	2000mm	2200mm	2400mm	2800mm
Max dump distance:	900mm	900mm	960mm	1000mm	1100mm
Bucket rollback angle:	42°	42°	42°	42°	42°
Max scraping depth:	100mm	140mm	160mm	160mm	160mm
Max unload angle:	47°	47°	46°	46°	46°
Lifting time to pivot pin:	7S	7S	8S	8S	10S
Descending time:	3.5S	3.5S	4S	4S	10S
Bucket volume	0.2m³	0.23m³	0.43m³	0.6m³	0.65m³
Bucket option:	4 in 1 bucket	4 in 1 bucket	4 in 1 bucket	4 in 1 bucket	4 in 1 bucket
Total size with tractor:	4.1*1.6*1.6m	4.1*1.6*1.6m	4.9*1.75*2.5m	4.9*1.8*2.5m	5.2*1.8*2.6m

Detailed Photos

Workshop Show

Related Farm Machines
These are the farm machine, tractors and the attachment tools:
FAQ
1, What tractors can you match the attachments tools?--- We can supply the tools for tractors from 25hp to max 260hp.2,What is the lead time normally?-- About 10-15days after getting the deposit money from client;3,What is the payment terms?-- T/T. 50% deposit in advance and 50% balance before shipment;4,How about the shipment method?-- Normally, if only one tractor without cab, we will make plywood case with steel frame packing to pack the tractor and do LCL shipment; If the tractor with cab, we suggest to use one single container to ship it.5, How about your quality control?--We have engaged in the tractor field for many years, now we have our own brand and have passed the EU CE certification, the quality is ensured.6, How about your warranty and after-sale service?---The warranty for the tractor is 1 year, if any part broken within one year, we will send the parts to client by express.If there is question about the operation or using, we will give technical support to guide client to do well.7, Any free spare parts supply for the tractor?--- Normally, we will give extra oil and diesel fitlers for spare parts.But it depends the order quantity.

---
