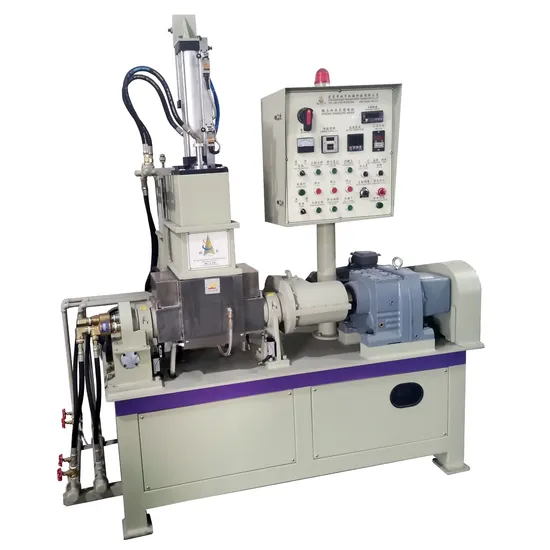

CF-3L/5L/10L Rubber Kneader Plastic Raw Material Internal Mixing Machine Rubber Mixer

Product Description

1. This machine is suitable for EVA, rubber, synthetic rubber, metal powder, ceramic powder, hot melt glue and all kinds of chemistry raw material to mix, kneading and disperse.
2. New powder leak-proof design, and easy to change or take out.
3. New heating and cooling system, warming faster and good cooling performance.
4. With utility model patents of our company, the inside of the contact part for the material is coated with ultra wear-resisting alloy, greatly increase the useful life.

EXPERIMENTAL TYPE
Model		CF-1L	CF-2L	CF-3L	CF-5L	CF-10L	CF-15L
Working Volume Of Mixing Chamber	L	1	2	3	5	10	15
Driving Motor Power	KW	4	5.5	7.5	11	18.5	22
Tilting Motor Power	KW	0.75	0.75	0.75	0.75	1.5	1.5
Rotational Speed Of The Protor (Front/Rear)	r/min	40/31	40/31	40/31	40/31	40/31	40/31
Air Compression Pressure	MPa	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Net Weight	Kg	800	1000	1100	1500	2500	2600

PRODUCTION TYPE
Model		CF-25L	CF-35L	CF-55L	CF-75L	CF-110L	CF-150L
Total Volume Of Mixing Chamber	L	45	75	125	180	250	380
Working Capacity Of Mixing	L	25	35	55	75	110	150
Driving Motor Power	KW	37	55	75	110	160	220
Tilting Angle	O	110	110	110	110	110	110
Rotational Speed Of The Protor (Front/Rear)	r/min	38/32	38/32	38/32	38/32	38/32	38/32
Air compression Pressure	MPa	≥0.6~0.8	≥0.6~0.8	≥0.6~0.8	≥0.6~0.8	≥0.6~0.8	≥0.6~0.8
Net Weight	Kg	4000	6300	7500	10300	14200	18000
Product Size	mm	2750*1750*2750	2900*2000*3000	3450*2300*3400	3600*2300*3900	3800*2550*3900	4700*3350*4000

Guangdong CFine Technology Co., Ltd. was established in 2013, is a manufacturer that specialized in designing, R&D, manufacturing, selling and maintain the plastic,rubber, powder metallurgy mixing and granulating equipments. The company has a unique courtyard, covering an area of 12000 square meters, a building area of 10000 square meters, and a team of nearly 100 people. We have very professional R&D team to meet the special requirements of customers, to custom-made the machine. We have strong technical strength, full range of advanced equipments and well -trained manufacturing team, together with modern management mode, convenient and swift after-sale service, thus our machines are sold more than 100 countries, obtained accordant appreciation by the clients and we had established long-term and stable relationships of cooperation.
Quality first,service uppermost is our guideline. Honesty and integrity, innovation contribution is our principle. C Fine is becoming the most professional and influential manufacturer in this industry, C Fine brand is most popular in China, and also available to the world in the near future!
Q : WHY CHOOSE US?
1. More than 10 years of history in producing compounding and granulating machines for plasticand rubber industries. 6-8 years of foreign sales experience staff, more efficient and professional. Engineers oversea service more than 10 countries.
2. ISO: 9001, CE certificate.
3. Serve timely. Promise to give solution within 24 hours.
4. Short delivery date, No delay. Accept an urgent order for prompt shipment.
Q : WHAT ABOUT THE DELIVERY DATE?
1. Payment term: 50% of deposit, 50% before shipment.
2. Delivery term: FOB or Ex-work.
3. Delivery time: 30-70 days after receipt of the deposit depended on the machines.
Q : WHAT'S THE WARRANTY STATEMENT?
Free warranty for normal use for one year. Spare parts are available at low prices.
Q : WHAT ABOUT CFINE AFTER-SALES SERVICE?
1. We arrange engineers to install the machinery and training the workers for clients abroad if required.
2. A professional team solves problems after-sales.
3. We supply spare parts for customers at low prices after the warranty time.
4. We always update the new technology to every customer.

---
