Blue high quality low price thermal conductive silicone pad

Product Details

Product Description

Product Description

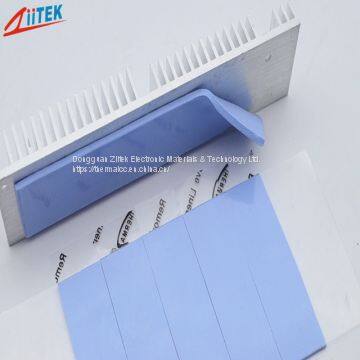

Blue high quality low price thermal conductive silicone pad
The TIF™160-23E thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.
Features
》Good thermal conductive: 1.5 W/mK
》Naturally tacky needing no further adhesive coating
》Soft and Compressible for low stress applications
》Available in varies thickness
Applications
》Cooling components to the chassis of frame
》High speed mass storage drives
》Heat Sinking Housing at LED-lit BLU in LCD
》LED TV and LED-lit lamps
》RDRAM memory modules
》Micro heat pipe thermal solutions
》Automotive engine control units
》Telecommunication hardware
》Handheld portable electronics
》Semiconductor automated test equipment (ATE)

Typical Properties of TIF160-23E
Product Name	TIF160-23E
Colour	light blue
Construction & Compostion	silicone elastomers
Thermal conductivity	1.5 W/mK
Hardness	35 Shore 00
Specific Gravity	2.88 g/cc
Thickness range	0.010"-0.200" (0.25mm-5.0mm)
Dielectric Breakdown Voltage (T= 1mm above)	>5000 VAC
Dielectric Constant	5.5 MHz
Volume Resistivity	6 X1013 Ohm-meter
Continuous Use Temp	– 20 To 125℃
Outgassing (TML)	0.30%
Flame Rating	94 V0

---
