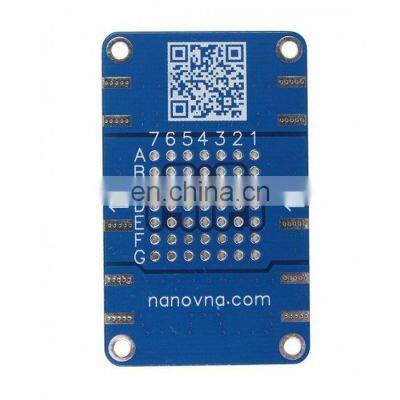

Unassembled NanoVNA Testboard Kit Demo Board Vector Network Analyzer Testing Board
Product Description
Description:
This test board kit is used for NanoVNA or other vector network analyzer user-friendly measurement plug-ins and SMT devices.
This test board contains a plug-in test circuit compatible with VNWA Testboard, and a set of 0805 and 1206 patch test circuits are added. The SMT circuit cannot fully consider various test situations. Some parts of the test may need to be cut over. Hands-on ability is highly recommended. This circuit board is not soldered before delivery, please bring your own welding tools, please build a test circuit according to your test needs, our shop is not responsible for circuit guidance.
Packing List:
- 1 x Testboard Printed Circuit Board
- 6 x SMA Female Connectors
- 4 x 6mm Copper Spacers
- 4 x M2.5 Screws
- 2 x 40-pin Round Row Seats
- 2 x 0805 49R9 Calibration Resistors
Note: Assembling is needed.
