Basic Info.
Function
Green Signal, Red Signal, Yellow Signal, Flash Alarm Signals, Direction Signals, Traffic Signal Wand, Lane Signals, Crosswalk Signal, Command Signal
Control Method
Timing Control
Housing Material
Metal Shell
Mask Specification
Φ200mm
Surface Treatment
Hot-DIP Galvanized
Raw Material
Q235B/A36/Q345b/A572, Q460, ASTM573 Gr65, Gr50
Welding
Advanced Submerge-Arc Welding Technology
Shape
Conical, Square, Round, Octagonal Optional
Galvanizing Standard
En ISO 1461 or Equivalent
Welding Standard
En 1011 or Equivalent
Design Standard
En 40-5 or Equivalent
Wind Speed
7m/S or Customized
Transport Package
Bubble Packing+Blanket Packing
Production Capacity
5000PCS/Month
Product Description

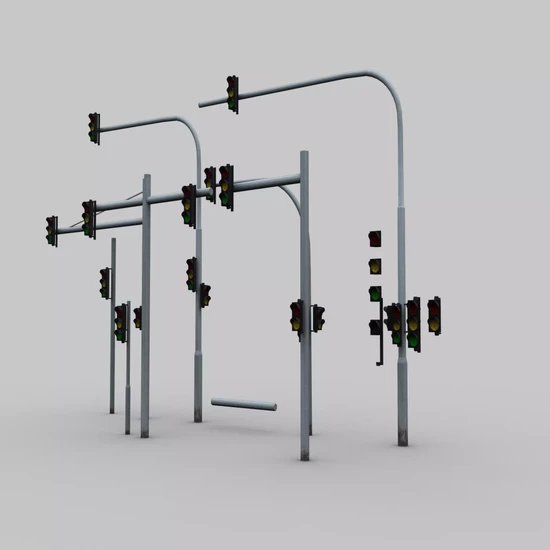

Product Parameters H6M+L0.6M Traffic Light Pole Diameter
Lamp pole
Steel:Q235B
Diameter of upright rod: 220-280mm
Thickness of upright rod: 5mm
Diameter of horizontal rod: 100-200mm
Thickness of horizontal rod: 4mm
Diameter of bottom flange: 550mm
Thickness of bottom flange: 18mm
Connecting flange: 300*300mm
Welding mode: Automatic submerged-arc welding
Anti-corrosion treatment: Pickling + internal and external hot galvanization + passivation + electrostatic plastic spraying
Thickness of zinc coating: ≥80um
Thickness of sprayed plastic coating: >=100 um
Appearance: Smooth surface, hardness >= 2H
| Traffic light:
Form: Combination of red, green, and yellow
Housing: Aluminum alloy or PC
Dimensions: 1050*350mm
Light source: Full screen or arrow
Diameter of single lamp: 300,400mm
Power: 5-24W
Voltage: 220V
Weight: About 10KG
Sign:
Customization: Yes
Material: Aluminum-alloy plate + aluminum slot
Category of reflective coating: Super High Level, High Level, Diamond Level
Background color: Yellow, blue, or white
Thickness: 1.2,1.5,2,3
|
| Main Pole Height:From 6M to 6.8M at 5-10mm thickness for Options. |
| Cantilever Length:From 3METER to 14M at 4-8mm thickness for Options. |
| ShapeConical, octagonal, square, cylinder |
| MaterialUsually Q235B/A36,then Q345B/A572,Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 for option. |
| Surface treatmentHot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
| Production ProcessRaw material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
Manufactured Pictures
Product Advantages Premium Quality Raw Materials: Various high-grade steel plates such as Q235B, Q345, Q355, and GR460 are available.
Authenticity Guaranteed: A mill certificate with an official stamp and signature is provided to ensure material quality. Precision in Thickness: Steel thickness is inspected with a tolerance of less than 0.1mm.
Standards Compliance: Adheres strictly to ASTM A36=Q235B requirements.
International Standards: Compliant with EN 10025. State-of-the-Art Inspection: Magnetic and ultrasonic welding inspections ensure superior quality.
Welding Excellence: Meets AWS D1.1 welding standards.
Adherence to Excellence: Compliant with EN1090-2 standards. Superior Galvanization: Hot-dip galvanizing thickness averages greater than 86UM.
Galvanizing Compliance: Meets GB/T13912-2002 standards.
Galvanizing Assurance: Compliant with ASTM A123 guidelines.
European Standards: Adheres to ENSIO 1461 regulations. Top-Quality Coating: Powder coating thickness exceeds 100UM.
Reliable Coating: Compliant with GB/T 3181-2008 standards.
Durable Coating: Meets ASTMD339-83 requirements. Company Profile
Project Cases
>>
