Manual PLC Controlled Drilling and Tapping Machine

Product Description

Manual PLC Control Drilling Tapping Machine

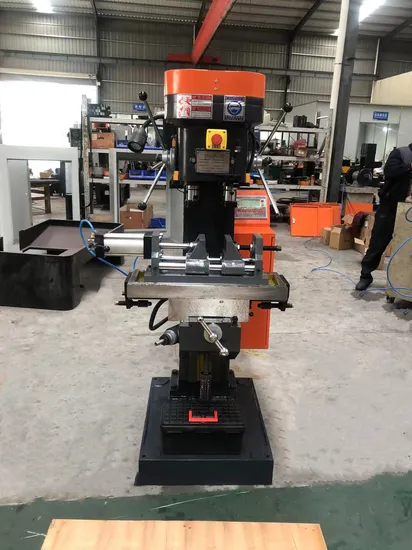

I.Equipment description and pictures 1.The manual machine tool consists of a base, a column, a lifting table, a middle drag, a worktable, and a spindle unit.
2.PLC control program control, friendly human-machine interface dialogue, intuitive programming and easy operation, ordinary people can quickly learn.
3.Sliding table double-spindle manual feed unit, Korea imported pneumatic components transmission table. The worktable adopts pneumatic device and hydraulic buffer for positioning, moving and high positioning accuracy. Eliminates the problem of partial tooth failure of old-fashioned equipment.
4.The worktable is high-frequency treated, wear-resistant, high-temperature resistant, and equipped with a lubrication system.
5.It is used in the processing of valves, plumbing and sanitary ware, door control hardware, fire hydrants, auto parts, etc. It is easy to operate, beautiful in appearance and cost-effective.
II.Technical Parameter

No.	Specification		Unit	LS4132 X 2		LS4132X2A		LS4132X2B
1	Spindle Sleeve Diameter		MM	86
2	Number of cutting spindle axes		/	2
3	Transfer method		/	Single motor synchronous belt drive		Single motor gear drive		Primary belt drive
4	Max drilling hole diameter		MM	32
5	Max tapping diameter		MM	32
6	Spindle taper		#	NT30
7	Spindle spacing		MM	150
8	Distance from spindle end face to work table		MM	260-580
9	Workbench size		MM	620*230
10	Workbench travel X axis		MM	160
11	Y axis medium towing travel		MM	120
12	Spindle stroke(drilling/tapping)		MM	100/100
13	Manual/automatic tapping		/	Manual
14	Drilling spindle speed		Rpm	1420/990/619			874/1382
15	Tapping spindle speed		Rpm	580/410/257			575/908
16	Drilling motor model no.		/	3kW/4P
17	Tapping motor model no.		/	/	/				3kW/4P
18	Total power		kW	3			6
19	Dimension(LxWxH)		MM	1200x68x1600
20	Weight		KG	700			750

III.Production workshop
IV.Package and Loading V.Certificate
our service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.
7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
our company:
Quanzhou Yueli Automation Equipment Co., Ltd was founded in 2013, which covers an area of 3000 square meters. The company is located at the China Plumb Town--Nanan, Fujian. It is a production enterprise lead by drilling tapping compound machine, drilling tapping centers and drilling tapping milling process center. The company is committed to serving various of industries such as sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing and so on.
Quanzhou Yueli Automation Equipment Co., Ltd has developed from a simple assembly manufacturing industry to be a machining manufacturer which collects research and development, production, sales and service. It owns CNC gantry rail grinder machine, boring mill, milling, digging, polishing compound machine and other advanced test equipment. Our company product is from sales, service network throughout the China domestic market. They are exported to foreign countries and regions.
We continue to innovate and strive for perfection in our products. We are specialized at quality, focus on the spirit, dedicated service to acquire the perennial support and profound affection from our customers.
In the future, we will continue to pay attention to the needs of users, constantly improve the professional level, the quality of science and technology. Win the market with the quality. We are willing to join hands in creating our brilliant future.

---
