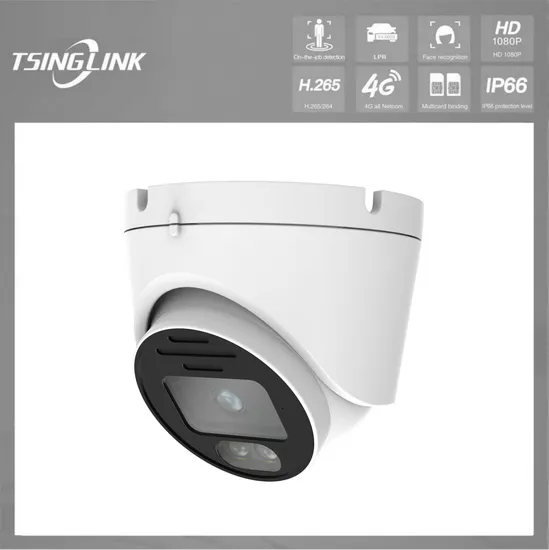

The hemispherical intelligent camera TSC660-F is an indoor fixed point intelligent monitoring product. The product can improve the real-time visualization and intelligent monitoring and management capabilities of user units, and has functions such as electric bicycle detection, smoking detection, fireworks detection, number of people statistics, mask wearing detection, human shape detection, car shape detection, etc. It can be widely used in various occasions such as smart buildings, smart communities, and smart industrial parks, etc. Key features Support multiple resolutions such as 5MP/1080P/720P Support encoding H.265, compatible with H.264 Fixed focus 3.6mm high-definition lens Integrated audio acquisition and speakers Support for external alarm input and output Embedded with various intelligent algorithms, including electric bicycle detection, smoking detection, fireworks detection, number of people counting, mask wearing detection, human shape detection, car shape detection, etc. Infrared fill light, distance 20m, supporting red and blue warning lights Support for built-in TF card storage Support iCap protocol, Support Tsinglink iCVS2.0 platform |
| Item | TSC660-F |
| Camera Sensor | 1/2.8" 5MP Progressive Scan CMOS sensor |
| Lens | 2.8mm fixed focus HD lens |
| RTC | Support |
| Video Compression Standard | H.265, compatible with H.264 |
| Video Resolution | 2880(H) x 1620(V), 5MP/1080P/720P, etc. |
| Frame Ratio | 1~30 fps adjustable |
| Bit Stream | Support dual stream |
| Picture Format | JPEG |
| Picture Resolution | 1080P/720P/VGA etc. |
| Overlay | Support overlay time, name information |
| Audio Input | One channel audio input, built in MIC |
| Audio Output | One channel audio output, built in speaker |
| Ethernet | RJ45 waterproof pigtail cable 10M / 100M adaptive Ethernet port |
| Alarm Input | One channel alarm input |
| Alarm Output | One channel alarm output |
| Storage | Builtin TF card |
| Power Supply Input | DC12V |
| Interface | DC5.5 |
| Installation Method | Wall, ceiling installation |
| Size | 108mm(D)×94mm(H) |
| Working Temperature | -10ºC~50ºC |
| Working Humidity | 0%~85% |
1. Are you a factory or a trading company? We are professional factory with nearly two decades experience, with 4000 square meters workshop and over 150 employees. We have the independent right to operate import and export to provide service to overseas customers directly, so there's no need to pay additional commission to agency and we could skip some steps to save more time. We have our own research and development of terminal and platform software, customization and secondary development is welcomed. Tsinglink has independent brand and provide OEM, ODM production as well. 2. What is your pricing strategy? Discount will be provided upon large quantity. For overseas markets, we will offer competitive price to support long-standing customers and distributors. 3. What is your minimum order quantity? Our minimum order quantity is 10 pcs for each model, but we accept small order as trial order. 4. How could I get a sample? Sample fee and freight charge will be listed on sample PI. Once our finance team confirms received your payment, sample and tracking number will be sent. 5. What's the payment terms? We accept TT (Telegraphic Transfer), Western Union etc as payment term for small order and L/C for larger order. 6. What's the delivery time? Usually 7-15 working days after received payment, but it depends on the order quantity. Estimated delivery time will be informed by sales before final payment. 7. What type of shipment will you use? We usually ship the products by express delivery to your door or by air freight to your nearest airport. If the order quantity is large, we may ship by sea. 8. How about quality control? ISO systems help our factory improve management level, ERP system can help us control the cost of procurement links effectively, so we can provide competitive price, new test equipments can do uninterrupted fatigue testing to ensure products using life. Pre-shipment inspection and third-party supervision are available. 9. Do you have agency for after-sales service? Sure. Our sales will instruct the installation of products and software. Please feel free to contact us if you meet any technical questions, we will help you work it out. 10. How can I be your sole-distributor? We have special policy for sole-distributor. Please contact our sales to get related files. Any further questions, welcome to contact our sales. |
