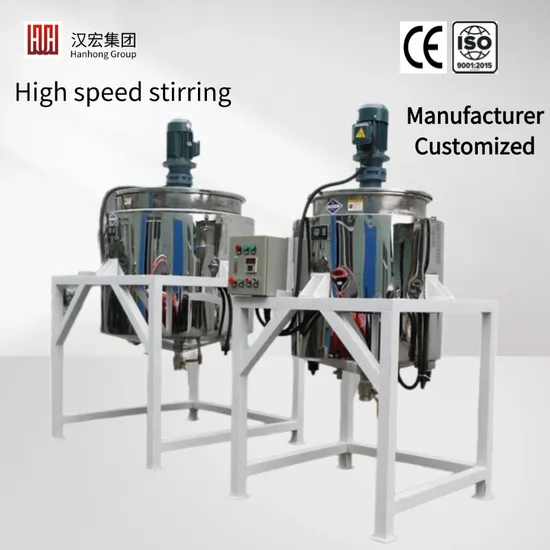

Vertical Stainless Steel Mixing Tank with Controllable Speed

US$2,500.00-50,000.00 1 Set (MOQ)

Basic Info.

Model NO.
H-0118
Type
Reaction Kettle
Material
Stainless Steel
Capacity
501-1000L
Structure
Filling Tube
Pressure
Negative
Agitator Model
Ribbon Agitator
Tower Reactor Type
Packed Tower Reactor
Heating
Oil Circulation Heating
Heat Transfer Structure
Jacketed
Automatic Grade
Automatic
Condition
New
Whether to Support Customization
Yes
Product Material
304-316 Other Special Materials Please Contact Cus
Anticorrosion
Lining Anti-Corrosion PTFE
Lined with Anti-Stick
Support
Transport Package
According to The Actual Customization
Specification
According to the actual customization
Trademark
hanhon
Origin
Yuanzhou Town, Huizhou City, Guangdong Province

Product Description

Note: The above prices are all deposits. The specific product prices are composed of many aspects. Please refer to the official quotation issued by our staff. Just te Product Description

ll us your needs and we can provide free product matching design solutions.
Reactor Detailed Specifications

model
kw
capacity
Material
Heating method
Heat transfer pipe
Condenser
Condensation Area
Vacuum Pump		 Lined with anti-stick Lined with anti-corrosion PTFE
Barrel size and height		 r/min
mm
thickness(mm)
Discharge port size
Heating power
Thermal oil
HH-50 0.55kw 72L Materials can be selected and heating methods can be added as needed. Add heating pipes as needed Match the condenser according to product requirements 2 2.2-7.5KW support ø400*650 35-60 500 2.5 1 6kw 40L
HH-100 0.55kw 140L 2 ø500*800 36-60 500 2.5 1 6kw 50L
HH-200 0.75kw 240L 2 ø600*950 36-60 800 2.5 1.5 12kw 85L
HH-300 1.5kw 380L 3 ø700*1100 36-60 1200 2.5 1.5 12kw 100L
HH-500 2.2kw 670L 3 ø900*1200 36-60 1500 3 1.5 18kw 150L
HH-1 3kw 1350L 5 ø1100*1600 36-60 1500 3 2 18kw 250L
HH-1.5 4kw 1750L 5 ø1200*1750 36-60 2000 3 2 24kw 300L
HH-2 4kw 2500L 6 ø1400*1850 36-60 2500 4 2 24kw 380L
HH-3 4kw 3600L 8 ø1500*2300 36-60 3500 4 2 36kw 750L
HH-4 5.5kw 4500L 10 ø1600*2550 36-60 4000 5 2.5 36kw 900L
HH-5 7.5kw 6000L 16 ø1800*2650 36-60 5000 5 2.5 48kw 1100L
HH-8 ø2200*2900
Notice:The product appearance can be made into a mirror,Please give us your requirements or specific parameters, and we will give you a plan and price. If you have any questions, please contact our staff and we will provide the best service.
