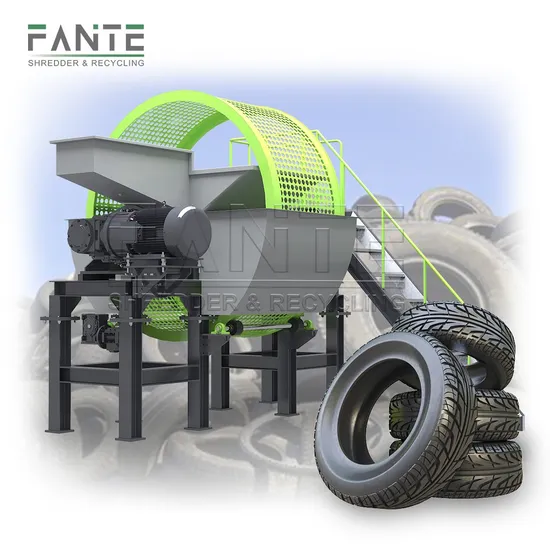

Scrap Car Tire Shredder Small Rubber Crusher Tyre Shredding Machine for Sale

Product Description

Introduction:
The tire shredder is mainly used for pre shredding waste tires in the tire line. After passing through a sieve, appropriate sized tire fragments are screened and processed in the next step. Suitable for different types of waste tires, we can provide you with the best solution according to your different tires. Materials:
The whole machine is made of the best material, the body is welded with all steel, and the main shaft of the blade is
made of imported high-strength alloy, which has high strength and higher wear resistance.
Features:
It is not easy to deform, has stronger bearing capacity, longer service life, is stable and durable, and has low speed.
It uses a hard tooth gearbox transmission system as the transmission structure, with large output torque, stable operation, and
higher efficiency. And it has low noise and energy consumption. It can be operated 24 hours a day.
Specification:

Model	FTHS-T-800	FTHS-T-1000	FTHS-T-1200	FTHS-T-1300
Voltage	as per request
Cutting Chamber L*W(mm)	804*680	1004*680	1204*920	1304*920
Blade Diameter(mm)	450
Equipment DimensionsL*W*H(mm)	3350*3010*3050	3800*3010*3100	5010*3010*4100	5120*3010*4100
Equipment Weight(kg)	5700	7000	16500	18500
Hopper Opening L*W*H(mm)	1150*1300*800	1300*1400*700	1850*1650*900	2050*1650*1000
Final Product(mm)	50

01.ChamberThe chamber is processed as a whole, with small error, high accuracy, and reduced vibration and strain. Arc baffles are installed on both sides of the case to ensure smooth discharge and improve output. 02.Shaft and BladeIt is made by multiple heat treatment and low temperature freezing heat treatment processes, with good overall toughness and hardness, ensuring cutting performance and service life. The fixed tool is installed by hook to optimize the tool replacement efficiency. 03.Bearing sealThe bearing pedestal adopts the method of assembling and disassem-bling, which is convenient to remove the moving knife, fixed knife, bearing and other parts, easy to maintain and replace the tool, and the sealing structure is used to block the broken material, grease, liquid material, and protect the bearing and gear, etc. Self-aligning roller bearing is adopted. 04.PLCPLC is programmed independently and equipped with start, stop, forward, reverse and overload protection functions. The overall automation ensures safety and stability and saves labor costs.

---
