Ring Chain Electric Hoist, Load 1 Ton, Lifting Double Speed

Product Description

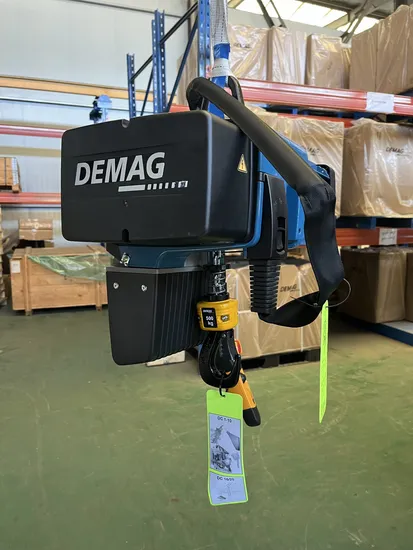

DC-Com chain electric hoist is the main model of fourth-generation chain electric hoist. Its design performance is suitable for most industrial occasions, especially for occasions where the general working frequency and speed requirements are not too high. DC-Com is an extremely cost-effective chain hoist. The DC-Com hoist can be used alone as a fixed hoist or combined with a light crane or an I-beam/H-beam crane to achieve more uses.
Lifting capacity: 125kg - 2000kg
Standard dual-speed lifting
Standard upper and lower limits
24V low voltage, intelligent control
The length of the hand-held pendant cable can be freely adjusted
Motor protection level: IP55
Gearbox, brake and clutch are maintenance-free for 10 years
Plug and play, convenient for installation and maintenance
Small size, light weight and compact structure
The manual running trolleys U11/U22/U34 are specially designed load trolleys for DC hoists to run on I-beam tracks or H-beam tracks. Their load capacities are 1100kg, 2200kg and 3400kg respectively.
Universal trolley wheels can run on I-beam tracks or H-beam tracks. Can be suitable for tracks of different widths up to 310mm. U11 and U22 are standardly equipped with high-strength nylon wheels, with light weight, small running resistance and less track wear. U34 is standardly equipped with ductile iron wheels. U11 and U22 can be optionally equipped with ductile iron wheels for large bearing capacity. Steel guide wheels are provided on the side for smoother running. Equipped with an anti-drop device for high safety. Can be directly equipped with an E11/E22 drive motor to become an electric running trolley.
The drive motors E11/E22/E34 can be directly installed on the manual running trolley to become an electric running trolley, making lifting and handling easier and more stable. Can be directly installed on the U11/U22/U34 manual trolley, very convenient. IP55 protection level. Working environment temperature: -20 degrees to +40 degrees. With motor temperature monitoring. All electrical connections are plug-in type for convenient installation. The circuit board integrates walking limit and fast/slow speed conversion switch control functions. The E22 drive motor can also be equipped on the RF125 trolley of the crane. Power is directly taken from the DC hoist without additional power distribution. Running speed and acceleration/deceleration parameters can be set through the hand-held pendant. Built-in load anti-sway program that can be *** as needed. When equipped with a DCS-PRO hoist, walking frequency conversion stepless speed regulation can be achieved.
.

---
