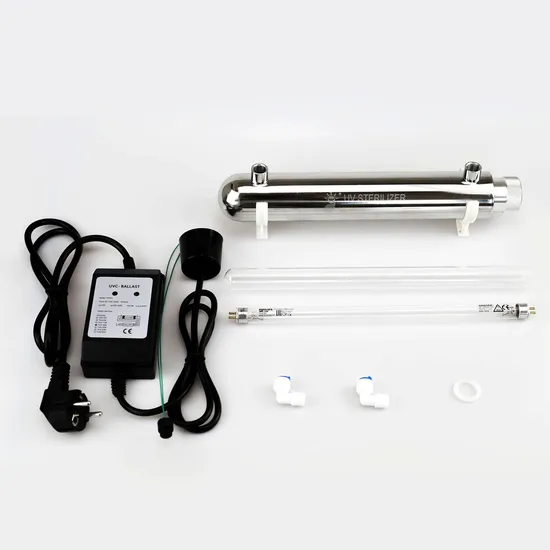

| Specification of ultraviolet water sterilizer assembly | |||||
| Tye | UV 4W | UV 6W | UV 12W | UV 16W | |
| Pure water | 0.056t/h 0.25GPM | 0.11t/h 0.5GPM | 0.22t/h 1GPM | 0.45t/h 2GPM | |
| Tap water | 0.044t/h 0.25GPM | 0.08t/h 0.4GPM | 0.017t/h 0.8GPM | 0.36t/h 1.6GPM | |
| Lamp rated life(hrs) | 8000 | 8000 | 8000 | 8000 | |
| UV dosage( Uw-sec/cm²) | >30000 | >30000 | >30000 | >30000 | |
| Electricity unit | Volts | 110-130 200-240 | 110-130 200-240 | 110-130 200-240 | 110-130 200-240 |
| Hz | 56/60 | 56/60 | 56/60 | 56/60 | |
| Wats | 4W | 4W | 4W | 4W | |
| Lamp failure | LED | LED | LED | LED | LED |
| Warming system | Alarm | Alarm | Alarm | Alarm | Alarm |
| Timer | NO | NO | NO | NO | |
| No.of UV lamp deeded | 1 | 1 | 1 | 1 | |
| Shell material(stainless) | 304# | 304# | 304# | 304# | |
| Inlet and outlet size(inch) | 1/4" | 1/4" | 1/4" | 1/4" | |
| Type of lamo holder | G5 | G5 | G5 | G5 | |
| Max operating pressure | 6kg | 6kg | 6kg | 6kg | |
| UV lamp | Import Brand | Import Brand | Import Brand | Import Brand | |
