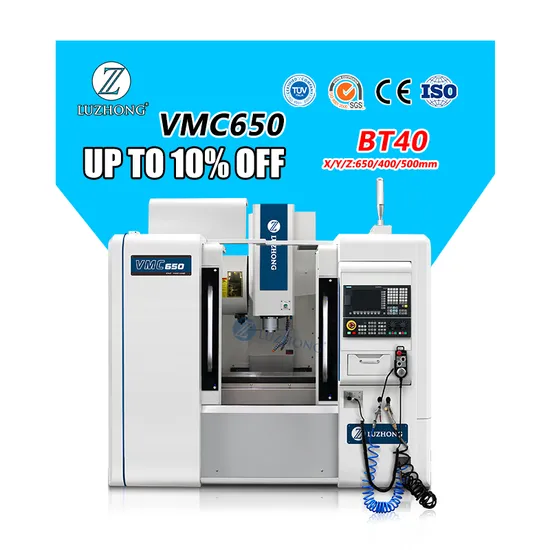

CNC Milling Machine VMC650 Vertical Machining Center

Product Description

CNC Milling Machine VMC650 Vertical Machining Center Product Description
The main performance characteristics:
High quality resin sand
Taiwan spindle
Automatic lubrication system
Chip conveyor at optional
System:GSK25I
16 Arm Tool Magazine
3 axis linear rail
Product Parameters
Product main technical specifications:

SPECIFICATIONS	Units	VMC650
Table size	mm	800*400
X axis travel	mm	650
Y axis travel	mm	400
Z axis travel	mm	500
Max. worktable load	kg	400
T slot(number-width*pitch)	-	3-18*120
Max. spindle speed	rpm	8000
Spindle taper	mm	BT40
Main motor power	kw	5.5
X/Y/Z rapid traverse speed	m/min	24/24/20
Cutting feed speed	mm/min	1-10000
Guide rail type	-	Linear rail
Distance from spindle axis to column surface	mm	469
Distance between spindle nose and table surface	mm	100-600
Positioning accuracy	mm	0.0075
Repeat positioning accuracy	mm	0.005
Tool magazine	-	Arm 16
Max. tool diameter	mm	φ90
Max. tool weight	kg	8
Machine weight	kg	3800
Overall dimension(L*W*H)	mm	2400*2000*2550

Machine Standard Details

MACHINE CONSTRUCTHigh strength high quality HT300 cast iron	CONTROL SYSTEMStandard: GSK25i / KND1000 control
TAIWAN PRECISION SPINDLE1. Taiwan spindle BT40 8000rpm 2. Passed dynamic balance ISO rating test	TAIWAN TOOL MAGAZINE1.Taiwan OKADA arm 16 tool magazine . 2. tool change time only 2-3 seconds.
LEAD SCREW AND COUPLING1 China famous brand lead screw, 2. lead screw bearing using SKF or NACHI bearing, 3. coupling YC directly connected	TAIWAN PRECISION LINEAR RAILS 1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class 2. Brand: HIWIN or PMI
TOOL UNCLAMP CYLINDERTaiwan spindle Tool unclamp cylinder	AIR STORAGE TANKAir storage tank to ensure the stability of spindle tool change
AIR GUN AND WATER GUNHigh-pressure air guns and high-pressure water guns	PNEUMATIC COMPONENTS Standard with AirTAC Pneumatic Components
SCHNEIDER ELECTRICAL COMPONENTS1. with Schneider safety electrical components 2. Quick plug as standard	AIR CONDITIONERwith Industrial electrical cabinet air conditioner. Cooling the electric box better .
LUBRICATION SYSTEM HERG Automatic centralized lubrication device .	TESTING Each machine passed Renishaw laser interferometer testing and ballbar testing
BT40 MILLING CHUCK Standard with BT40 milling chuck .	LOCKING KNIFE BLOCK Standard with lock knife block .

Machine Optional Details
Company Information
Shandong Luzhong Machine Tool has :
More than 100,000m² of the factory with more than 200 workers.
Strictly QC control with more than 24 steps testing processes
30+ years CNC machine manufacture experience factory
24 hours online service at any time
Trade with customers in more than 150 countries around the word .
Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC ect.
Support ODM OEM.
Warranty time is 18 months.
Shandong Luzhong Machine Tool Co.,Ltd. Has got many international certifications such as ISO, WIPO, CE, BV, TUV, SGS, and patents. Our machines have been exported to more than 100 countries and regions, covering North America, Europe, Europe, South America, Middle East, and Southeast Asia. And we provide long-term overseas technical guidance and after-sales service for these countries .
Adhering to the "Best Machine by LUZHONG" purposes, We provides better quality machines, more efficient and thoughtful after -sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
