Coffee Tea Packaging Food Grade Material Design Automatic Paper Can Making Machine

Product Description

2. CFJG-SK-50 Servo Controlled Paper Tube Making Machine

Technical Parameter
Paper Layer	10 Layers
Inner Diameter	20-100mm
Wall Thickness	0.5-5mm
Winding Speed	1-25meters/min
Winding Nose	Double noses single belt
Length Fixing	By Encoder
Cutting Way	Servo Synchronous Tracking Cut
Cutting Length	500-5000mm (speed will be low when cutting length < 1000mm)
Gluing Way	Double sides	Configuration
Shaft Fixing	by Flange	Gluing System	10 Layers
Speed Control	By Inverter	Paper Reel Stand including Paper Lifting Device	10 Layers Integral Type
Operator	1-2 persons
Working Air Pressure	0.6Mpa	Inner Paper Shelf	1 Set
Power Supply	380V/3Phase/50Hz	Discharging Shelf	1 Set
Measurement & Weight		Mandrel Shaft (mold)	2 Pieces
Measurement	4200*1600*1800mm	Belt	4 Pieces
Working Space	11000*8000mm	Useful Tool	1 Set
Weight	3700kgs	Extra blades	5 Pieces

2023 Latest Model
Double-heads Single Belt Spiral Winding
Single Knife Online Cutting System; Servo Motor Controlled;
Cutting Length 500-5000mm ((speed will be low when cutting length < 1000mm))
Equipped with 10 layers integral type paper reel stand have hoist paper lifting device
Equipped with 10 layers double sides spraying type gluing unit

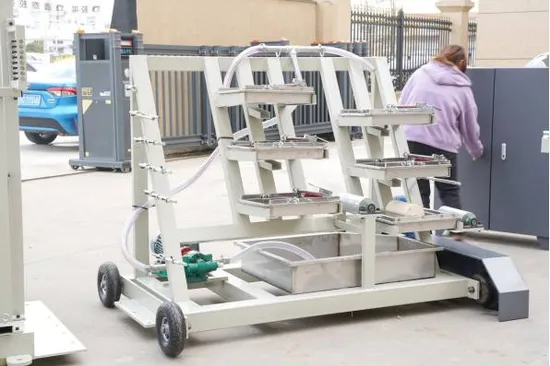

Inner paper stand 1 set
Paper Tube Collector * 1 set
Finished tubes

---
