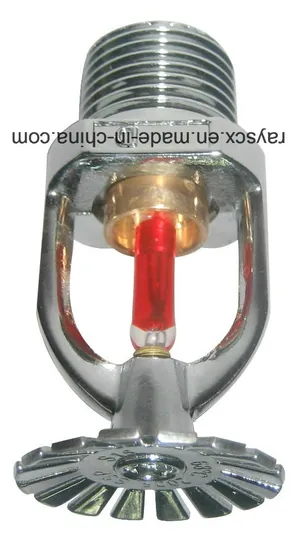

UL Listed Glass Bulb Pendent/Upright/Sidewall Fire Sprinkler

Product Description

Fire fighting, fire fighting equipment, fire extinguisher, smoke detector, fire hose, fire alarm, fire blanket, fire hose reel, fire cabinet. Our products include Fire Sprinkler sprinkler, ABC fire extinguisher, BC fire extinguisher, CO2 fire extinguisher, Water fire extinguisher, foam fire extinguisher. FE236 fire extinguisher, fire hose, rubber line fire hose, PU line fire hose, PVC fire hose, EPDM fire hose. Fire hose reel.

Glass Bulb: 5mm, 3mm

Color ranged: Orange 57oC, Red 68 oC, Yellow79 oC, Green 93 oC, Blue 141 oC, Purple 182 oC

Model: Diameter: 15mm

ZSTZ 15 (upright) installed upward

ZSTX15 (pendent), installed downward

ZSTP15 (Conventional), installed both upward and downward

ZSTB 15 (sidewall) installed sideward

Specifications: Airproof test pressure: 3 Mpa Rated working pressure: 1.2 Mpa Thread: R1/2 K coefficient: 80 Flowing calculation: Q=K10P (P=working pressure)

Large Coverage Glass Bulb Sprinkler
Model: Diameter 20mm
ZSTX20 (pendent), installed downward Protected Area: 4.9X4.9 M2
ZSTB 20 (sidewall) installed sideward Protected Area: 4.9X6.7 M2
Specifications:
Airproof test pressure: 3Mpa,
Rated working pressure: 1.2Mpa,
Thread: R3/4
K coefficient: 115
Flowing calculation: Q=K10P (P=working pressure)
Price and packing list: FOB China Main port US$ unit.
Other products: Fire extinguisher, fire hose, fire hose reel. FM-200, halon 1301, CO2 fire extinguishing system in pipe and cabiniet style, water system(water flow indicator, wet alarm systme, deluge alarm system, sprinkler head), electrical products (fire alarm bell, call point, emergency light, sound alarm bell, control panel), fire hose reel, fire hose, extinguisher fittings, filling machine. Nozzle, discharging hose, coupling, spraying, call point, fire alarm bell.

---
