Outdoor 12pcs FTTH Drop Cable Port 1*8 PLC Splitter Telecommunication Box Closure 12 port FTTH Box

Product Details

Product Details

Product Description

Product Description
Outdoor 12pcs FTTH Drop Cable Port 1*8 PLC Splitter Telecommunication Box Closure 12 port FTTH Box
Product Description

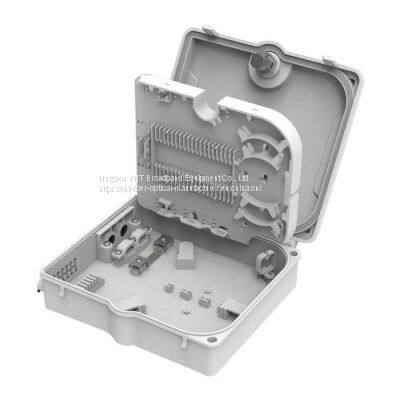

Fiber optic terminal box OTB-P028 is a box for fiber terminal distribution in optical fiber transmission and communication network. It can be 12 fibers splicing, protection and distribution.
Features :
l Material: ABS plastic.IP65
l Rainfall resistant, IP65 outdoor using.
l Can load 12pcs SC simplex adapters.
l Wall mounting and pole mounting application.
l Can accommodate 1x4,1x8 PLC splitter.
l 2pcs cable entry ports (Max. cable diameter 12mm)
l 12pcs exit ports for FTTH drop cable
l Max splice capacity:20 fiber
l Cable entry without cutting;
Specification:
Model
Capacity
Dimension
Remark
Outer carton size
(10pcs/CTN)
OTB-P028
12 ports
L233.5*W210*H70.5mm
1 rotary splice tray
46*42*26cm

Application:
l FTTH access network.
l Telecommunication Networks
l CATV Networks
l Data communications Networks
Drawings (mm):L233.5*W212.5*H71.5mm
Accessories list:
Item
Name
Description
Unit
Quantity
1
Splice sleeve
60mm*3.0*1.5
pcs
According the cores in the order
2
Cable tie
3mm*120mm/white
pcs
10
3
Round head tapping screw
C type/4*30/
iron/bright chrome
pcs
3
4
Plastic expansion pipe
Φ6mm/plastic/white
pcs
3

Key AttributesIndustry-specific attributesType
Racks & Enclosure
Other attributesModel Number
OTB-P028
Place of Origin
Guangdong, China
Brand Name
CSYHT
Use
FTTH
Warranty Time
1 year
Product name
Caja de terminales de fibra
Dimension
L233.5*W212.5*H71.5mm
Material
ABS+UV Plastic
Application
Outdoor
Warranty
1 Year
Model
OTB-P028
Brand
CSYHT
Ports
16
colors
black or white
Certification
CE RoHS
Packaging and DeliveryPackaging Details
Caja de terminales de fibra
20sets/ctn, each carton 54*43*36cm, 18kg
Selling Units:
Single item
Single package size:
10X10X10 cm
Single gross weight:
4.000 kg
Lead Time
Quantity (pieces)1 - 200> 200
Lead time (days)15To be negotiated

SamplesMaximum order quantity: 1 piece
Sample price:$20.00/piece
CustomizationCustomized logo
Min. order: 200
Customized packaging
Min. order: 1000
Graphic customization
Min. order: 200
For more customization details, message or email supplier!
