Semiconductor Device Fabrication Fab Wafer Fab Single Side Grinder Mdfd-910lx-3q

Product Description

Product Description

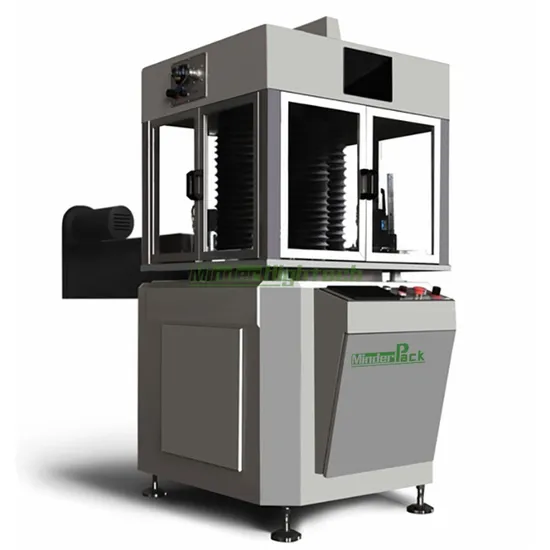

Single side grinder MDFD-910LX-3Q
Put the workpiece to the grinding disc, disc rotate, workpieces rotate, pressed by gravity, grind and pol The disc reviser is moving under oil floating condition to maintain the disc. 1,with grinding fluid circulation system, can control the temperature between 1 degree. 2,highly polishing result, can get roughness:Ra0.0002, flatness 0.002. 3,cylinder will not drop down when air out, so to avoid injures. 4,use PLC and touch screen to control machine, the grinding speed and time can be set directly. 5,machine with 3 working station, can grinding and polishing 3 workpieces at one time.
Application
suitable for high hardness,thin,and high precision product. like LED sapphire substrate,quartz crystal,silicon wafer,ceramic,wolfram plate, germanium plate thinning(grinding)
Specification:

Model	MDFD-380LX MDFD-380LP	MDFD-460LX-3Q MDFD-460LP-3Q	MDFD-610LX-3Q MDFD-610LP-3Q	MDFD-910LX-3Q MDFD-910LP-3Q	MDFD-1320LX-3Q MDFD-1320LP-3Q	MDFD-1600LX-3Q MDFD-1600LP-3Q
Control method	LP: polishing with out grinding disc reviser. LX: can do grinding and with grinding disc reviser machine integrated.
Grinding DISC	D380*120*h12mm	D460*140*h12mm	D610*160*h12mm	D910*200*h12mm	D1250*200*h12mm	D1600*400*h12mm
Max material size	D170mm	D180mm	D270mm	D450mm	D600mm	D910mm
Grinding speed	0-140rpm	0-140rpm	0-140rpm	0-60rpm	0-60rpm	0-60rpm
Reviser DISC	D178*140mm*3pcs	D220*180mm*3pcs	D280*240mm*3pcs	D450*410mm*3pcs	no	no
Main motor power	0.75kw/3*380V	1.5kw/3*380V	2.2kw/3*380V	7.5kw/3*380V	11kw/3*380V	15kw/3*380V
Revise motor power	0.1kw/3*380V	0.1kw/3*380V	0.2kw/3*380V	0.2kw/3*380V	0.2kw/3*380V	0.2kw/3*380V
Revise Speed	0-120mm/minute
Dimension(mm)	750*700*700	1200*1500*1800	1200*1650*1750	1600*2100*2200	2800*1600*1850	2450*2050*2550
Weight	150kg	850kg	1000kg	2550kg	2700kg	2800kg

sample
Factory
Detail

---
