US$9,480.00-28,980.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
Develop No. Series
Suitable for
Copper, Alloy, Carbon Steel
Item
CNC Automatic Steel Wire Stirrup Bending Machine
Color
Yellow, Grey, Red etc
Application
Construction Projects
Transport Package
Wooden Case or as Required
Specification
size is different for different model
Production Capacity
1000sets/Year
Packaging & Delivery
Package Size
356.00cm * 100.00cm * 170.00cm
Package Gross Weight
1350.000kg
Product Description

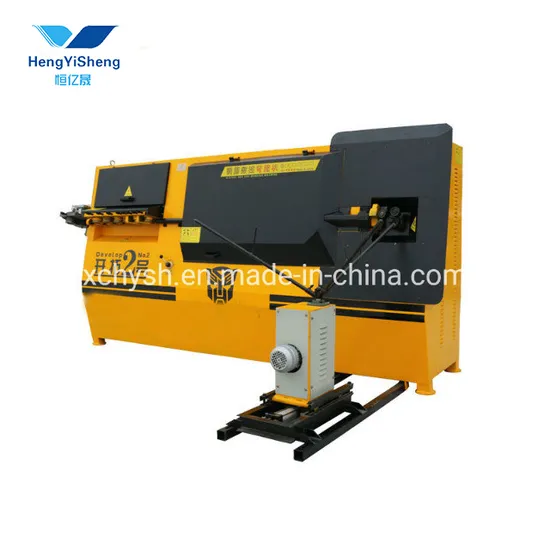

Hot Sale Automatic Steel Bar Bending Machine CNC Wire Stirrup Bending Machine
CNC Wire Bending Machine Product Description:
1. Frictional progressive feeding mechanism with high accuracy and no harm to steel bar rib.
2. The benders apply double line feeding system, which can greatly increase the productivity and reduce the labor intensity.
3. With the function of quick back and forth bending, the double vane bending die has improved its bending performance.
4. Powerful hydraulic shearing mechanism with good reliability.
5. The powerful memory database provides hundreds of shapes for using.
6. Quick-adjusting system has the function of machine diameter diameter.
7. Bending scope of coiled steel bar ranges from 5mm to 12mm
8. Synchronous belt drive with high accuracy and low cost of maintenance.
9. Hydraulic Controlling system.
CNC Wire Bending Machine Technical Parameter:
| Model No. | Develop NO. 1 | Develop NO. 2 | Develop NO. 3 | Develop NO. 5 |
| Single Line Working Capacity(mm) | Round steel bar:
4-10 | Round steel bar:
4-12 | Round steel bar:
5-13 | Round steel bar:
5-13 |
| 3 grade deformed steel bar:4-8 | 3 grade deformed steel bar:4-10 | 3 grade deformed steel bar:5-13 | 3 grade deformed steel bar:5-13 |
| Double Line Working Capacity(mm) | Round steel bar:
4-6 | Round steel bar:
4-10 | Round steel bar:
5-10 | Round steel bar:
5-10 |
| 3 grade deformed steel bar:4-6 | 3 grade deformed steel bar:4-8 | 3 grade deformed steel bar:5-10 | 3 grade deformed steel bar:5-10 |
| Working temperature | -5~40ºC | -5~40ºC | -5~40ºC | -5~40ºC |
| Max. bending angle | 180° | 180° | ±180°
(double direction) | ±180°
(double direction) |
| Max. feeding speed(m/h) | 3600 | 3600 | 4500 | 4500 |
Max. bending speed
(°/s) | 800 | 800 | 1000 | 1000 |
| Length Error(mm) | ±1 | ±1 | ±1 | ±1 |
| Angle Error(°) | ±1 | ±1 | ±1 | ±1 |
| Average power consumption | 4.5kw/h | 5kw/h | 5kw/h | 5kw/h |
| Motor power(kw) | 12.5 | 20 | 28.5 | 30.5 |
| L*W*H(mm) | 2600x880x1700 | 3280x1000x1700 | 3560x1080x2030 | 3560x1080x2030 |
| Weight(kg) | 1150 | 1350 | 2200 | 2450 |
CNC wire bending machine Detailed photos:
CNC Wire Bending Machine FAQ
What's the payment term?
We accept T/T, Western Union, L/C and Cash.
What's the delivery time?
If we have in stock, the delivery time from our factory to Qingdao Port will be within 5 days after receiving full payment.
Can you customize the machine for us?
We can customize the machine as your request.
Can your technician come to our country to install and adjust the machine?
Our technician can come to your country to help you install and adjust machine.
What services do you provide?
We provide our customers within 2 years warranty and technical support is provided for free.
Can I change the motor to my local voltage and frequency, is there any extra charge?
Yes, we can supply motor with frequency and voltage according to local standard, such as 220V/380V/410V/415V/440V, and 50HZ/60HZ 3 Phases with extra charge.
