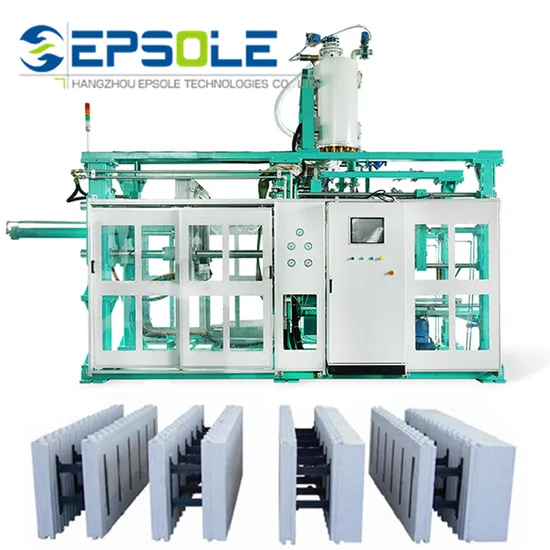

Factory Supply Automatic EPS Icf Insulated Concrete Forms Shape Moulding Machine with Vacuum

Product Description

Technical Data

Machine Type				QDCS(Quick Die Change System)
Item			Unit	ESS1214Q	ESS1417Q	ESS1618Q
Outer Diameter			mm	5363x3310x4852	5363x3610x5152	5363x3710x5352
Mould Size			mm	1200x1400	1400x1700	1600x1800
Max.Product Height			mm	350	350	350
Mould-Open Distance			mm	1200	1200	1200
Guide Pillar	Outer Diameter		¢	80	80	100
	Qty		pcs	4	4	4
Hydraulic Cylinder	Inner Diameter		¢	125	150	150
	Stroke		mm	1200	1200	1200
	Lock force		bar	29437	42390	42390
Material Hopper	Volume		L	145	145	145
	Qty		pcs	2	2	2
Steam	Inlet		DN	100	100	100
	Mould Inlet		DN	65x2	50x4	50x4
	Pressure		bar	2.5	2.5	2.5
	Consumption		Kg/cycle	6	7.5	9
Cooling Water	Inlet		DN	80	80	80
	Mould Inlet		DN	50	50	50
	Pressure		bar	4	4	4
	Consumption		Kg/cycle	40	50-120	60-160
Vacuum	Connector		DN	100	100	100
	Drainage		DN	100	100	100
Compressed Air	High Pressure	Inlet	DN	65	65	65
		Pressure	bar	4	4	4
	Low	Inlet	DN	50	50	50
	Pressure	Pressure	bar	5	5	5
Hydraulic	VolumeMotor		Kw	7.5	11	11
			L	400	400	400

Detailed Photos
Hydraulic System:
*Adopt famous brand hydraulic components, differential pressure system design, can achieve high speed, low noise operation, the fastest mold opening and closing speed can reach 350mm/sec, can achieve high speed and efficient stable operation;
*Two-point mold opening and closing, the latest mold clamping technology and mechanism, can stabilize the mold clamping pressure, the equipment is not easy to leak during production, and effectively improve the energy consumption (steam) utilization rate.
Pipeline System:
*The inlet, outlet and diameter of the valve of each pipeline system are optimized, so as to minimize the waste of energy consumption and increase the reaction speed;
*The design of cooling pipe makes the water cooling fast and efficient. The mold cavity copper tube ring design makes the product contact surface more extensive, the cooling is more sufficient, and the product surface is smoother and smoother
Molding System:
*Apply electric digital proportional valve: adopt imported electric digital proportional valve with linear position sensor to efficiently and accurately control the proportional opening of the angle seat valve and combined with the digital pressure sensor, so that the mold cavity pressure can be linearly stable, changed traditional equipment Analog control of door open and close two switch ways, with imported valve brands of quality guarantee and stable performance, while effectively saving steam and other energy consumption;
*EPS molding machine the latest heating system bypass pipeline, can effectively shorten the molding time and Reduce steam energy consumption
Control System:
*Adopt Siemens intelligent control system and humanized windows system operation interface to make the operation more convenient and intelligent;
*The imported electric proportional valve plus linear position sensor and pressure sensor are used to efficiently and perfectly cooperate with the control system to make the feeding, heating, blowing, water cooling and other work more accurate, stable, reliable and efficient;
*The latest production molding technology makes it convenient and efficient control equipment to effectively improve production efficiency
production process






1. Q: Where is your company located? How can I visit there?A: Our factory is located in Hangzhou City, Zhejiang Province, China. Welcome to visit us.2. Q. Do you have some videos where we can see the line producing? A: Yes, we can provide some videos for reference.3. Q: What's the MOQ?A: Our MOQ is 1 Set.4. Q: Can I have my own customized product?A: Yes. Your customized requirements for color, logo, design, package, carton mark, your language manual etc. are very welcome.5. Q: Can you produce according to the samples?A: Yes, we can produce mold by your samples or technical drawings.6. Q: What's the delivery time?A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items andthe quantity of your order.7. Q: What is the payment terms?A: T/T, L/C, D/P at sight8. Q: How does your factory carry out quality control?A: We attach great importance to quality control.Every part of our products has its own QC.9. Q: What certificate do you have?A: We have TUV, CCC, CE (EN71, EN14765), SGS, ISO9001 etc. Also we can apply any certificate if you need if the qty is OK.

---
