drive-on chassis straightening bench equipment

Product Details

Product Description

Product Description

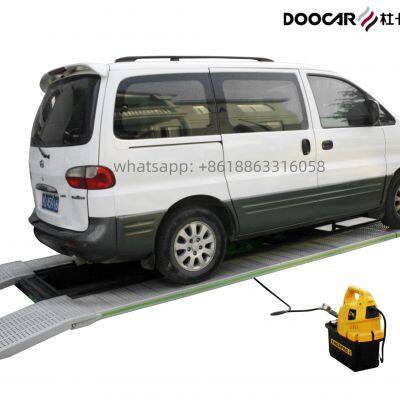

The drive-on chassis straightening bench Techer 7 is an auto frame machine has one built-in double scissor lift lifting capacity of 4000kg. The bench frame of 5.5 meters long ensures the equipment ideal straightening bench for cars of all sizes, commercial vehicles, pickup, utility trucks, MPVS, heavy duty all-terrain vehicles.
Combining with one set of drive-on ramps, all vehicles can drive onto the bench easily and fast for body and chassis straightening. The straightening bench is ideal for repairing cars of all sizes, commercial vehicles, pickup, MPVs.
Drive-on chassis straightening bench Techer 7 features:
1.The hydraulic system for pulling tower is imported from United States, it is powerful, reliable and long lift. It is compatible with Car-o-liner auto body frame machine.
2.Built-in scissor lifts ensures the bench lifting capacity upto 3500kg. Ideal for high end automobile body repairs, like BMW, Benz, it is compatible with Car-o-liner brand.
3.The bench frame height adjustable from 280mm to 1320m, convenient for car chassis repair.
4. Flexible drive-on benches ensures all vehicle loading and unloading fast and efficiently.
5. Universal anchoring clamp is compatible with Car-o-liner anchoring system.
Specification:

bench length	5000-5990mm
bench width	1180-2380mm
bench height	380-1200mm
pulling tower capacity	360 degree pulling
Hydraulic system working pressure	70Mpa
pulling tower capacity	100KN
Power gas source pressure range	0.5-0.8Mpa
loading capacity	4 Ton
weight	2500kg

Drive-on chassis straightening bench Techer 7 in car body shops:

---
