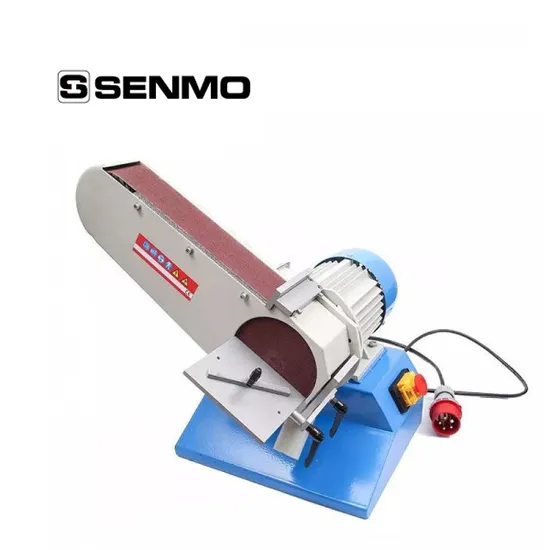

Heavy Duty Bench Belt Grinding for Rough and Fine Metal Grinding Bds75 Senmo

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
BDS75
Type
Abrasive Belt Grinding Machine
Abrasives
Abrasive Belt
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Dust Extraction Outlet
50mm
Sanding Disc Diam.
150mm
Belt Sanding Table
280X80mm
Machine Dimension
470X720X520mm
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84609090

Product Description

Belt and Disc Grinder BDS75,BDS75-2 Feature
·Graphite coating on face grinder increases sliding capacity of sanding belt
·Graphite coating on face grinder increases sliding capacity of sanding belt
·Wide range of applications such as contour, surface and cylindrical grinding
·Quick adjustment from vertical to horizontal grinding
·Solid and torsion-free machine housing guarantees smooth run
·Efficient deburring of edges, buffing of welding seams
·Sanding disc fastener, ideal for multiple change of grit
·Model BDS 75-2 comes with 2 speed settings and adjustable workpiece support
·Sanding belt is easy to change, manual adjustment of belt tension

Specifications BDS75 BDS75-2
Sanding belt 75x1180mm 75x1180mm
Belt speed 11m/sec. 11/22m/sec.
Belt sanding table 280x80mm 280x80mm
Belt sanding table tiltable 0°-90° 0°-90°
Sanding disc diam. 150mm 150mm
Sanding disc table 150x130mm 150x130mm
Sanding disc table tiltable 0°-45° 0°-45°
Dust extraction outlet 50mm 50mm
Motor power output S1 100% 1.1kW 1.5/1.8kW
Motor power input S6 40% 1.5kW 2.1/2.5kW
Voltage 400V 400V
Machine dimension : 470x720x520mm 580x680x765mm
Weight approx. 65kg 69kg

Standard Accessories
·Sanding belt grit 80
·Sanding disc grit 80
·Spark protection (BDS75-2)
·Sanding and supporting table
·Graphite coating
·Dust extraction outlet
·2-speed switch
