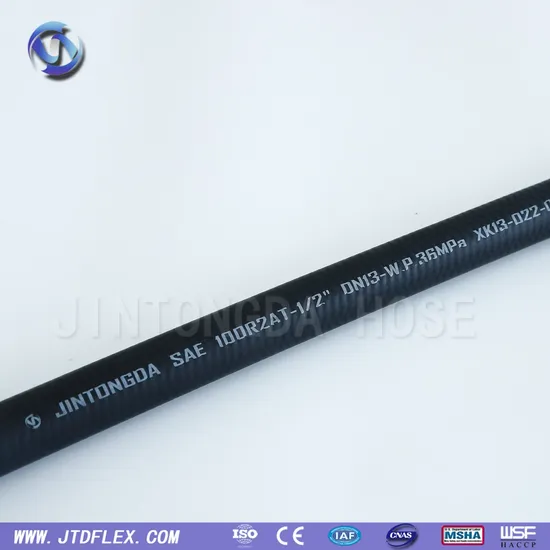

High Quality European SAE DIN Standards Flexible High Pressure Pipe Tube Textile Steel Braided 2sn 1sn R2 R1 Rubber Flexible Hydraulic Hose

Product Description

Product Description1. Tube: Oil-resistant synthetic rubber
2. Reinforcement:Two high tensile steel wire braids
3. Cover: Oil and weather-resistant rubber
4. Application: Petroleum based hydraulic fluid, water, lubricating oils, glycol, mineral oils, and more
5. Safety factor:4:1
6. Temperature Range:-40ºC to 100 ºC

Size		Inside Ø mm		Braid Ø mm			Outside Ø mm	Working Pressure		Burst Pressure		Bend Radius	Length	Weight
Inch	mm	Min	Max	Min	Max		Max	Bar	Psi	Bar	Psi	mm	m	Kg/m
3/16"	5	4.6	5.4	10.6		11.6	14.1	414	6020	1650	23295	90	50/100	0.32
1/4"	6.3	6.2	7.0	12.1		13.3	15.7	400	5800	1600	23200	100	50/100	0.36
5/16"	8	7.7	8.5	13.7		14.9	17.3	360	5075	1400	20300	115	50/100	0.45
3/8"	10	9.3	10.1	16.1		17.3	19.7	331	4785	1320	19140	130	50/100	0.54
1/2"	12.5	12.3	13.5	19.0		20.6	23.0	276	3990	1100	15950	180	50/100	0.68
5/8"	16	15.5	16.7	22.2		23.8	26.2	250	3625	1000	14500	200	50/100	0.80
3/4"	19	18.6	19.8	26.2		27.8	30.1	215	3120	850	12325	240	50/100	0.94
1"	25	25.0	26.4	34.1		35.7	39.9	165	2390	650	9425	300	50/100	1.35
1 1/4"	31.5	31.4	33.0	43.3		45.7	49.5	125	1810	500	7250	420	20/40	2.15
1 1/2"	38	37.7	39.3	49.6		52.0	55.9	90	1305	360	5220	500	20/40	2.65
2"	51	50.4	52.0	62.3		64.7	68.6	80	1160	320	4640	630	20/40	3.50

More ProductsWe are manufacturing and marketing all kinds of hydraulic hose&fittings, we can also produce according to customer's drawings or samples.
Hydraulic Hose(Full range of DIN and SAE):
Wire braided: SAE R1/DIN EN 1SN, SAE R2/DIN EN 2SN, SAE R16, SAE R17
Wire spiral: SAE R9, R12, R13, DIN EN 4SP, DIN EN 4SH
Textile braided: SAE R3, SAE R6, SAE R5
PTFE Hose, SAE R7, SAE R8, Ratory Drilling Hose
Company Profile JUYE JINTONGDA PIPE INDUSTRY Co., Ltd is a professional manufacturer of steel wire braided hydraulic tubing with various specifications from 1999. We integrates the Research&Development, production, sales and focus on the top quality products all the time. Our company registered capital is 21million RMB, covering an area of 30, 000 square meters, which is located in the alluvial plain of Yellow River, with the developed transportation and convenient logistics.
We specialize in the production and sale hydraulic hose. We produce 1SN, 2SN, 4SP and 4SH hydraulic hoses as per American standards of SAEJ517, standards of DIN. Automatic high speed braiding machine and advanced quality management system to ensure the reliability and stability of the product. Annual production capability is 10 million meters(colth hose 4million and smooth hose 6million). Advanced production techniques and strict quality control, ensure good quality. We have a strict ISO quality control system and a perfect after-sales sewice system. Welcome customers at home and abroad to visit and negotiate with JINTONGDA, we must serve you very well! Our Advantages 1.Professional:
Our factory was established in 1999 and has more than 20 years of experience in hydraulic hose production. Currently, we have three factories of our own, one for rubber mixing and two for production.
2.Over standard quality
4 times burst pressure,1, 2 layer hose pulse can reach more than 200,000 times, 4 layer hose can reach more than 400,000 times.
We have our own laboratory equipped with all the equipment needed for product testing. Every product we produce is tested before sale.
3. High productivity
36 steel braiding machine, 4 spiral machines, 16 high-speed stranding machine and 6 vulcanization. At present, our monthly output can be maintained at about 1200, 000 meters, and the annual output can reach 14 million meters.
4. High quality raw materials
Our factory uses high-quality raw materials to ensure product quality, and we have our own rubber mixing center to control quality from the source.
5. A good after-sales service During the after-sales validity period, once we receive customer feedback on quality issues, we will respond within 72 hours. Customer satisfaction is our aim.
Product Packaging
Conventional packaging is in woven bags.
We can also customize packaging according to customer needsCertifications FAQQ1. Who is Juye Jintongda?A: We are a professional manufacturer of hydraulic hose and industrial hose with various specifications from 1999. We integrates the Research & Development, Production, Sales Export and focus on the high quality products all the time.
Q2. Please, do you have OEM service?A: Yes, we have OEM service.Q3. Can you produce according to the samples?A: Yes, we can produce by your samples or technical drawings.Q4. What is your sample policy?A: Usually the sample is free of charge, but the customers have to pay for the freight charge.
Q5. What is your terms of packing?A: Generally, we pack our goods in neutral white wearable woven bags. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.Q6. What is your payment term?A: T/T 30% in advance, and 70% before delivery or against copy of documents.Q7. What is your delivery term?A: EXW, FOB, CFR, CIF,etc.Q8. How about your delivery time?A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Q9. Please,do you have quality certificate?A: Yes, we have ISO 9001, SGS, CE and related test report.Q10. How long can you guarantee the goods?
A: We guarantee the goods one year.Q11. Please, do you test all your goods before delivery? A: Yes of course, we have 100% burst pressure test and impulse tests before delivery.

---
