10 Station manifold 24V 220V multiple solenoid control valves

Product Details

Product Description

Product Description

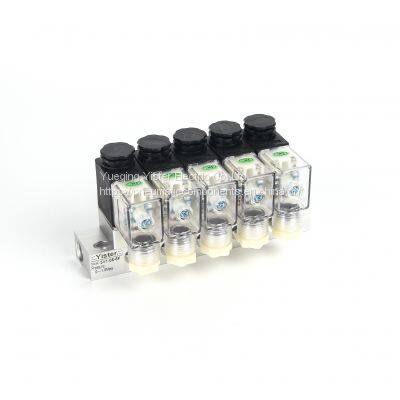

10 Station manifold 24V 220V multiple solenoid control valves
Order code for 2V025-06
Symbol for 2V025-06 Manifold Solenoid valve group
Technical parameter

Model	2V025-06	2V025-06-10F	2V025-08
Fluid	Air. Water. Oil
Acting	Direct acting
Initial state	2.5	2.5	2.5
Orifice size	0.23	0.23	0.25
Port size	G1/8''	G1/8'' multi solenoid valve group	G1/4''
Viscosity limit	Under 20CST
Pressure range	0-1.0MPa(0~145psi)	0-1.0MPa(0~145psi)	0·05-1.0MPa(7~145psi)
Proof pressure	1.5MPa(215psi)
Material of body	Aluminum Alloy
Seal material	NBR
Response speed	<0.05s

Dimension
Feature
.2V025-06F Solenoid Valves（2 Way Normally Closed ）DC24V/1/4NPT（Please air in the direction of the arrow above the product）,could be with 2-10 stations
.2v025-06 has high precision pilot head, up to 5 times/second response speed, suitable for a wide range of, responsive, smooth work, high-speed use without jam.

---
