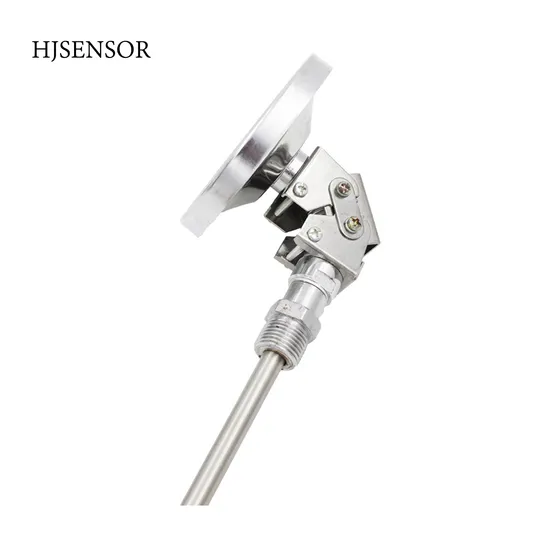

100mm Diameter Dual Display Bimetallic Thermometer Temperature Gauge

Product Description

Product Overview: WSS series industrial Bimetallic thermometer is a kind of measuring instrument suitable for field measurement temperature. It can be directly measure the temperature of precious gas, liquid and steam,widely used in machinery, shipbuilding, petrochemical, metallurgy, electric power, light industry and scientific research departments. Compared with the industrial glass mercury thermometer,WSS series industrial Bimetallic thermometer has the advantages of no mercury damage, easy reading, robustness and vibration resistance. It can be used to replace the fragile industrial glass mercury thermometer.
Features:
No harmful mercury, easy to read
Protection tube material is stainless steel, pressure and corrosion resistance
Axial and radial-type, 135-type, universal type and other varieties, adapted to the needs of a variety of on-site installation Parameters:

Dial Diameters	2.5"(63mm), 3"(75mm), 4"(100mm)
Pressure range	-50ºC~0~600ºC
Connector/Socket	M20*1.5, G1/2, other customized
Tube diameters	6mm, 8mm,10mm, other customized
Tube length	Customized, at least 50mm
Dial Plate	Single,dual (°C,°F)
Pointer	Aluminum
Case	ss304
Ring	ss304/ crimpled ring
Installation direct	Axial type, Radial type, multi-direction type
Liquid filled	Glycerin (selected)
Accuracy	1.0%
Trademark:	Hangjia
Transport package:	Paper carton
HS Code:	9026209090

Ordering Guide

Code	Type
HTB	Bimetal thermometer
	Range	Measure range
	(0-X)ºC	X input directly
		Code	Dial Diameter
		60	Φ60
		100	Φ100
		150	Φ150
			Code	Structure
			1	Axial Direction
			2	Radial Direction
			3	Multi-direction
				Code	Insert length
				l	at least 50mm, input directly
					Code	Tube diameter
					1	8mm
					2	10mm
					3	12mm
						Code	Tube length
						L	mm, input directly
							Code	Installation
							1	Without Fixing
							2	Fixed thread
							3	Tri-clamp
								Code	Connection
								P1	M20×1.5
								P4	G1/2
								K1	1.5"clamp
									Code	Others
									F	Anti-corrosion
									N	Shock-proof
Sample: HTB	0-200°C	100	3	l=80	1	L=95	2	P1	N

Related Products: Certification: FAQ: 1. Q: Are you manufacturer or trading company? A: We are manufacturer which focuses on sensor for 10 years. 2. Q: What's your quality control system? A: MC, ISO9001, CE Certificated. 3. Q: What is the warranty of your products? A: Our warranty time is 18 months after shipment. 4. Q: What is lead time of your product? A: Normally, our factory lead time is within 10~15 working days for products without customization. You can also check lead time detail with our sales depending on different items. 5. Q: Do you provide customized products? A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed. 6. Q: What is your MOQ? A: We have no MOQ limit, small quantity order is acceptable. 7. Q: What's the transport? A: Express such as DHL, FedEx, TNT, UPS for freight prepaid; and we can also use your own courier account to do the freight collect. For more goods we can arrange by air or by Sea. 8. Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU.

---
