10-3/4"Johnson Wedge Wire Continuous Slot Filter Tube

Product Description

water well drilling stainless steel water well screens
Water well screens are also known as Johnson wire screens, wedge wire screens, wire wrapped well screens, rod based well screens, continuous slot water well screens, vee shaped wire well screens, screen pipe, screen pipe, oil pump screen, changeable filter element, stainless steel strainer pipe.

Xinlu Wire Screen Products Co.,Ltd is a professional manufacturer of water well screens, Johnson wire screens, wire wrapped well screens, continuous slot vee shaped wire well screens, wedge wire screens , oil well screens, bridge slotted well screens, rod based well screens, pipe based well screens, API casing, ISO tubing, sand control screen pipe, spiral wire screen tube, stainless steel strainer pipe, stainless steel filter screen, galvanzed screen tube, dewatering well screen, wedge wire filter candles, screen nozzle, filter nozzle, strainer nozzle
Introduction

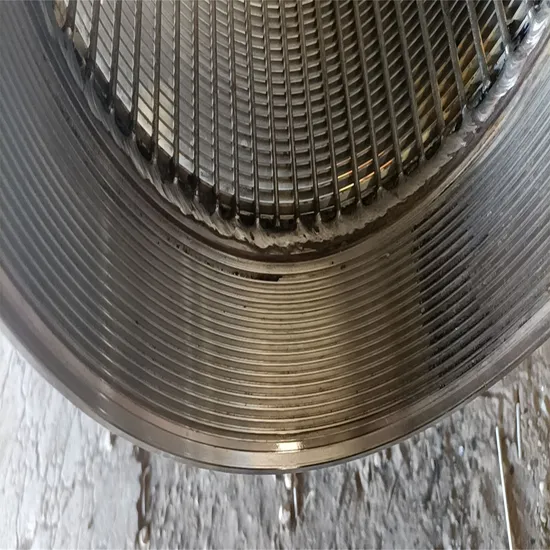

Water well screens are manufactured by a v or wedge shaped wire around an internal array of longitudinal support rods. Each intersecting point of these wire is fusion welded.The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well.
Specifications of water well screens
1. Slot size(mm): 0.1~3mm
2. Open area: up to 60%
3. Material: low carbon, low carbon galvanized steel (LCG) steel treated with anticorrosion coating, stainless steel (304, 316L etc)
4. Unit Length up to 6 meters
5. Diameter: ranging from 25 to 800mm
6. End connection: plain beveled ends for butt welding or threaded coupling or flange

Product Name	Wedge Wire Johnson Water Well Screen
Diameter model	2" 3" 4" 6" 8" 9-5/8" 10" 12" 14" 16"
Mesh Size	1mm-100mm
End Joint	Bevel Welding Ring, Thread Joint, Flange
Material	Stainless Steel 201 no magnetic, 304, 304L, 316L, 321, Duplex stainless steel 2205, Low Carbon Steel Iron Wire Q195/Q235,
Wrapped Wire size	2x3mm, 2.2X3.5mm, 2.5X4mm, 3X4.6mm, 3X5m, 3X6mm
Support wire diameter	2.3-6mm
Length	1m-6m (or 10ft 20ft according to customized)
Surface treatment	Electrolytic polishing or polishing or pickling Polished or Galvanized or Silver Spraying Painting
Features	High Strength, Corrosion Resistant, Durable, No burrs, bright surface
Application	Mining, Food Processing, Chemical Industry, Filtration, Separation, Sieving and Screening, Etc.
Transport Package	Inside Transparent plastic bag, outside woven bag or bubble bag, Wooden case, pallet or container
Wedge Filter	Wedge filter with high strength and wear resistance
Wedge Wire Screen	Wedge wire screen with high filtration accuracy

--------------------------------------------------------------------------------------------------------------------------
Our factory XinLu Wire Mesh Product co., Ltd located in Anping country, Hebei Province, China.
Our mainly products are: stainless steel vee shaped wire /wrap wire, Johnson screen, water well screen, rod based wire wrapped screen, wedge wire screen pipe, reverse wedge wire screen, v wire screens, johnson filter nozzle, screen nozzle, water and gas strainer, sieve bend screen, DSM Screen, Drum screen, ARC screen, header and hub laterals &hub radial laterals, pipe base, dewatering well screen, continuous slot screens, stainless steel wire mesh, perforated wire mesh etc.

---
