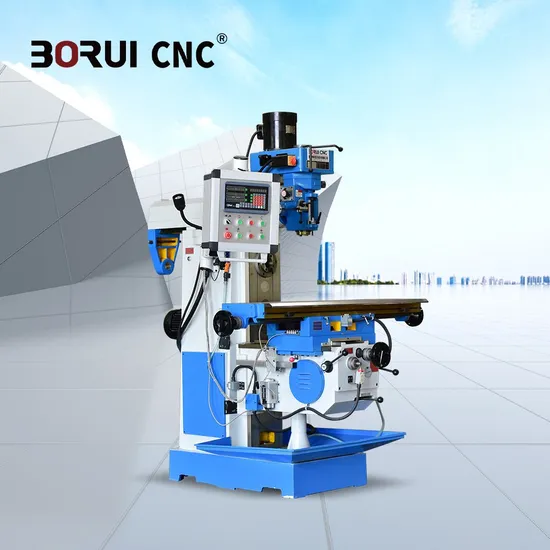

Manual Metal Milling Machine Tool Equipment X6336cw

Product Description

Manual metal milling machine tool equipment X6336

Product Description
The product is easy to operate and reliable. Available for all kinds of cylindrical milling cutter, milling cutter, angle cutter, milling cutter and face Various plane, inclined plane, groove, etc.. If the use of appropriate milling machine accessories, can be processed gear, cam, arc groove
And other special shaped parts, such as the spiral surface, the configuration of universal milling head, round table, the worktable size of the machine can be further expanded,Large machine tool use range, according to user needs can be configured to display device.
The main specification :

SPECIFICATIONS OF TURRET RADIAL HEAD MILLING MACHINE X6336
SPECIFICATIONS	X6336
Spindle taper	ISO40(V) ISO50(H)
Diameter of quill	120mm
Distance from spindle to table	135-535mm
Distance between spindle axis and boom	230mm
Distance from spindle to column	200-700mm
Spindle speeds	80-7200r.p.m (V) 60-1800r.p.m(H)
Spindle travel	145mm
Feeding of quill	(3step)0.04 0.08 0.15
Max.drilling capacity of auto-feeding	Ø10mm
Head movement	±45°
Table size	1250×360mm
Table travel	1000/320/400mm
Feeding range of longitudinal.cross travel	22-555mm/min(8steps)
X,Y-axis rapid feed speed	1080mm/min
Z-axis Rapid feed speed	590mm/min
Z-axis motor power	1.1kw
Max.weight of worktable	400kg
T-slot Number/Width/Distance	3/18/80mm
Milling head moving(Vertical)	7.5HP(V) 4kw(H)
Cross slide way	90W(25L)
X,Y axis driving motor	750W
Overall dimension	2220×1790×2360mm
Packing size	1800×1900×2250mm
N.W/G.W.	2450/2650kg

Standard Accessories 1. Work lamp
2. Machine Vice
3. Milling Chuck
4. Draw bar
5. Tool & toolbox
6. Reduction sleeve
Optional Accessories 3-axis Digital Reading
Dividing Head
Rotary Table
Clamping Kits
The Turret Milling Machine advantage :
1.The milling machine Auto feed on two axis,motorized lift on Z axis
2.Hardening treatment,rectangular guide way
3.High speed turret milling head, high precision
4.The Universal milling machine structure of rectangular guide rail, the milling machine itself is more stable, more accurate.

Details Display
Company Profile
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
