Plastic Extrusion Blow Molding Machine HDPE Small Bottle Making 6 Cavities

Product Description

Product Description

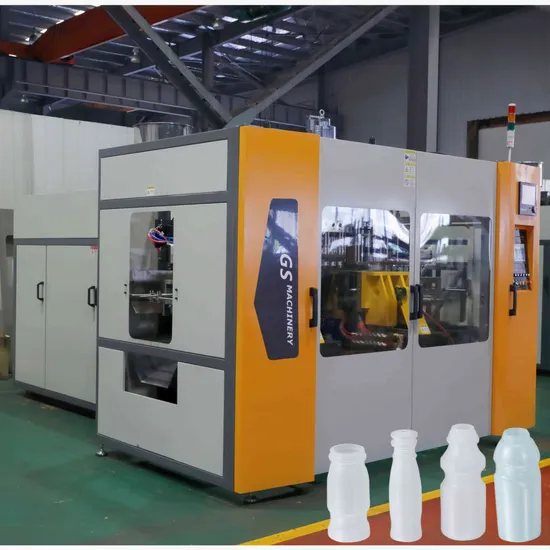

GS-3L-II double station machine is specially for high speed production of beverage bottles, milk bottles, and yogurt bottles, etc. In accordance with different type of products, die heads can be changed to achieve multi-type production. it can reach 2000pcs/hr for 350ml milk bottles in 6 cavity MACHINE ADVANTAGES
1. Toggle-balanced clamping frame, with well-known liner guide rail from Taiwan; great clamping force and explosion-proof;
2. Can be achieved 16 blow pins at the same time perpendicular to the mold pin blow hole; patented die head, easy for changing color.
3. Computer intelligent control system, operation, set and modify the production process conveniently
4. Deep mirror treatment is used inside the die head, curve flow channels are smooth, no dead ends, no carbon left;
5. Strengthened and hardened cold treated screws, screw and barrel are with wear resistance; parts of tube wall thickness are very uniform
6. Various components are produced with Japan's CNC machine tools, use Mazak to process six-sided installation surfaces at the same time. Imported well-known brands Hydraulic, pneumatic and electrical parts are equipped to ensure that the rigorous process, stable and reliable quality. Detailed Photos
MECHANICAL STRUCTURE
Toggle-balanced clamping frame,
Mold carriage is with high-precision linear railway guide HIWIN from Taiwan;
The end positions & slow speed positions are controlled by proximity switches and braking valves
great clamping force and avoid mold swelling problem;
Whole blow pin frame could be turned over onto top platform, convenient for mold change
DIE HEAD
Head mode: the continuous extrusion head is designed double lips torpedo type die head with individual flow control valve;
Deep mirror treatment is used inside the die head, curve flow channels are smooth, no dead ends, no carbon left;
convenience to refueling, change color, purge, disassembly and cleaning with those die head.
Symmetry part of the wall thickness is very uniform;
HYDRAULIC SYSTEM
Double proportional valve control oil flow and pressure, directional valve control flow way, deceleration valve brakes, achieve smooth and fast action;
Hard steel pipes fully avoid oil leaking;
World famous brand Yuken from Taiwan for oil pump & valve, Siemens motor, bigger oil cooler.
Inverter is from ABB or Taiwan DELTA, adjust the screw speed, saving energy .
CONTROL SYSTEM
Computer intelligent control system, operation, set and modify the production process conveniently.
provide remote control system to assist client's operatation;
have English, Russian, Arabic, Spanish, French, etc different language on touch screen, easier for operators in different countries.
ELECTRIAL SYSTEM
World famous brands like SIEMENS, OMRON, MINGWELL etc, full y-guaranteed machine preformance and liftspan.
MOOG parison controller 200 points with MOOG Servo valve for option.
could control bottle wall thickness precisely, saving production cost in a long run.
servo motor +servo pump are optional. saving 30--40% power consumption
rotary cutter fixed on machine, for neck waste cutting, suitable for different neck sizes, improve working efficiency greatly.
we have the best designer group to complete custom requirements.
equipped with a set of advanced mould processing system and the best machines
Application

Product Parameters

Specification		GS-3L-II
Material		PE,PP…
Max.container capacity	L	3
Number of die	set	1, 2, 3, 4,5,6
Machine Dimension	m	3.74×2.8×2.3
Total weight	ton	8
Accumulator head		GS-3L-II
Number of die heating	zone	4-19
Power of die heating	KW	4.5-16.5
Max die-pin diameter	mm	80
Center distance of twin-die	mm	240
Center distance of tri-die	mm	160
Center distance of four-die	mm	110
Center distance of six-die	mm	75
Clamping Unit		GS-3L-II
Clamping force	KN	70
platen opening stroke	mm	170-350
platen size	mm	440×250
Max mould size	mm	550×280
Mould thickness	mm	170-220
Extruder Unit		GS-3L-II
Screw diameter	mm	70
Screw L/D ratio	L/D	25\1
Extruding Volume	Kg/hr	100-120
Number of heating zone	zone	4
Extruder heating power	KW	12
Extruder driving power	KW	30
Power		GS-3L-II
Oil pump drive power	KW	15
Fan power for screw	KW	0.5
Total power	KW	58-70
Air pressure	Mpa	0.6
Air consumption	m³/min	1.5-2.0
Average energy consumption	KW	38
Cooling water consumption	m³/h	1.5-2.5

After Sales Service
-Installation & testing
A technician shall be sent to test the machine till it can work normally upon buyer's notification when everything is ready for installation and testing. The buyer shall bear all the charges involved since the technician leave off seller's company till he gets back, charges including transportation expenses, visa fee, accommodation, and insurance, etc. If the technician is required to go abroad, USD 120/day shall be charged as the service fee within the same time period stated above.
-Warranty & Guarantee
We provide 2 years guarantee since machine is running normally at buyer's factory.
The seller shall deal with all the problems due to the quality of the machine within the guarantee
period, with the damaged parts (unit price > USD 50) sent back for new ones.
Our company act strictly according to the requirement of ISO 9001 quality system with every spare part registered before shipment so as to assure prompt service.
24hours online for technical support
