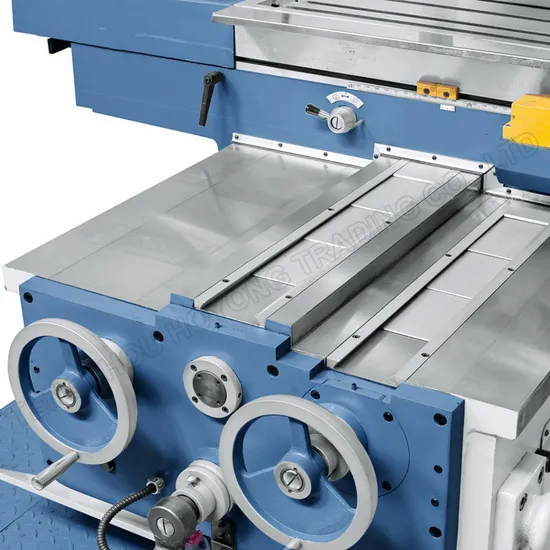

Bed Type Milling Machine X713 X715 X716 X7140 Xz5150A Xz5150

Product Description

1.The machine is with universal swivel head, it can perform both vertical and horizontal milling
2.The machine is with servo motor, and three axes are automatical feed.It is with rectangular guideways with high stability.
3.The machine is equipped with automatic lubrication system.
4.The machine is bed-type milling with large load and suitable for machining large workpieces

Model	Unit	X715
TABLE :
Table size	mm	2100x500
T slot	no	4
Size ( Width )	mm	20
Centre distance	mm	100
Max. load of Table	kg	2000
machining range :
Longitudinal travel	mm	1500
Cross travel	mm	670
Vertical travel	mm	670
MAIN SPINDLE :
Spindle taper		ISO50 7: 24
quill travel	mm
spindle speed /step	rpm	40-1600/12
spindle axis to column surface	mm	610
spindle nose to table surface	mm	0-670
FEEDS :
Longitudinal/cross feed	mm / min	20-1800/stepless
Vertical	mm / min	10-900/stepless
Longitudinal rapid speed	mm / min	3500
Rapid Traverse vertical	mm / min	1750
POWER :
main motor	kW	7.5
feed motor	kW	2
elevating motor for headstock	kW	2
coolant motor	kW	0.55
others
package dimension	cm	228x228x283
overall dimension	cm	330x238x275
N/W	kg	7300/8000

---
