Basic Info.
Automatic Grade
Automatic
After-sales Service
1 Year
Warranty of Core Components
1 Year
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Core Components
Core Components
Application
Processing Blade
Sand Wheel Diameter
150-250mm
Working Frequency
50 Tooth/Min
Others
We Can Customize Sharpener for Customer
Applicable Industries
Applicable Industries
Keywords
Saw Blade Sharpener
Transport Package
LCL Iron Frame
Specification
900*750*700MM
Production Capacity
50 Tooth/Min
Product Description
Product Description

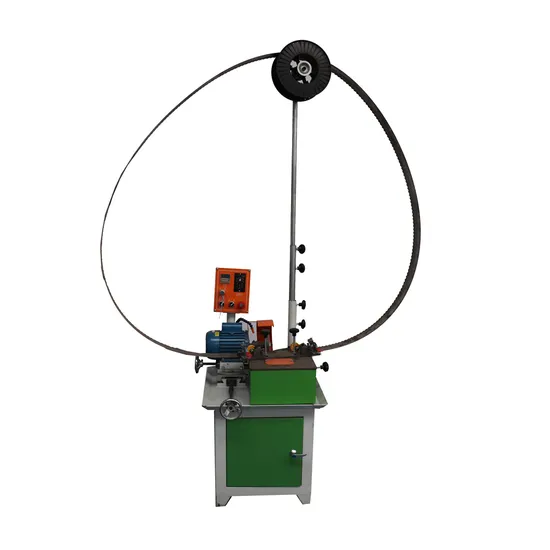

Band Saw Blade Sharpener Automatic Band Saw Blade Sharpener mainly used to polish and process the tooth flank,the back of tooth,and the throat of tooth of the jugged saw blade.It's size is small-sized,easy to adjust and of simple structure.
Model
| MR100
|
Maximum grinding width
| 100mm
|
Sharpening saw blade tooth spacing
| 15-25mm
|
Speed
| 0-40 PCS/min
|
Diameter of grinding wheel
| 125-150mm
|
Motor power
| 1.1KW
|
Weight
| 80KG
|
Band Saw Blade Sharpener
|
Technical Parameter
| MR1111
| MR1115
| MR1118
|
Grind Width
| 30-80mm
| 30-125mm
| 60-150mm
|
Sand Wheel Diameter
| 150mm
| 250mm
| 250mm
|
Band Saw Blade Pitch
| 8-20mm
| 10-30mm
| 10-40mm
|
Working Frequency
| 50 tooth/min
| 50 tooth/min
| 50 tooth/min
|
Weight
| 52kg
| 100kg
| 200kg
|
Overall Size
| 830*560*530mm
| 950*650*600mm
| 900*750*700mm
|
Technical Parameter
| MR150
|
Grinding Band Saw Blade Width
| 30-150MM
|
Grinding Band Saw Blade Thickness
| 0.5-1.3MM
|
Motor Power
| 0.55KW
|
Grinding Blade Speed
| Adjust
|
Weight
| 150KG
|
Automatic Band Saw Blade Sharpener mainly used to polish and process the tooth flank,the back of tooth,and the throat of tooth of the jugged saw blade.It's size is small-sized,easy to adjust and of simple structure. Related products
MD710 Automatic tooth grinding machine
| Model | MD710 |
| Grinding Blade Diameter | 125-800mm |
| Grinding Wheel Diameter | 150mm |
| Grinding Wheel Motor | 370W |
| Feeding Speed | 0-24 teeth/min |
| Size | 1100*850*1380 |
Flash Seal Welding Machine
Technical Parameter
| UN65
| UN125
| UN150
|
Welding Saw Blade Width
| 15-50mm
| 30-125mm
| 30-150mm
|
Welding Saw Blade Thickness
| 0.5-1.15mm
| 0.7-1.25mm
| 0.7-1.25mm
|
Voltage
| 380V 50 HZ
| 380V 50 HZ
| 380V 50HZ
|
Weight
| 100kg
| 200kg
| 250kg
|
Roll Machine
Technical Parameter
| MR417
|
Max Processing Blade Width
| 150mm
|
Roll Diameter
| 70mm
|
Processing Speed
| 52R/Minute
|
Motor Power
| 0.75KW
|
Overall Size
| 720*450*550mm
|
Weight
| 148KG
|
