Faucet Parts Manufaucturing Compound Machine

Product Description

CNC Manual Drilling Tapping Compound Machine
I.Equipment description and pictures 1,The manual working machine consists of a base, a column, a lifting table, a middle trailer, a working table and a spindle unit.
2,PLC Control Program Control, man-machine interface friendly dialogue, intuitive programming easy to operate, ordinary people can quickly learn.
3,Sliding sleeve type double spindle manual feed unit, Korean imported pneumatic transmission worktable. The table adopts pneumatic device and hydraulic buffer positioning, moving, positioning accuracy is high. Eliminates the old-fashioned equipment easy to appear the screw thread does not malfunction.
4,Worktable after high-frequency processing, wear-resistant, high-temperature, equipped with Lubrication System.
5,Applied to valves, plumbing sanitary ware, door control hardware, fire hydrants, auto parts and other processing, easy to operate, beautiful appearance, cost-effective.
II.Technical Parameter

No.	Parameter name/Specification		Unit	ZS4132 X 2		ZS4132X2A		ZS4132X2B
1	Spindle Sleeve Diameter		MM	86
2	Number of cutting spindle axes		/	2
3	Transfer method		/	Single motor synchronous belt drive		Single motor gear drive		Primary belt drive
4	Max drilling hole diameter		MM	32
5	Max tapping diameter		MM	32
6	Spindle taper		#	NT30
7	Spindle spacing		MM	150
8	Distance from spindle end face to work table		MM	260-580
9	Workbench size		MM	620*230
10	Workbench travel X axis		MM	160
11	Y axis medium towing travel		MM	120
12	Spindle stroke(drilling/tapping)		MM	110/110
13	Manual/automatic tapping		/	Manual
14	Drilling spindle speed		Rpm	1420/990/619			874/1382
15	Tapping spindle speed		Rpm	580/410/257			575/908
16	Drilling motor model no.		/	3kW/4P	3kW/4P				3kW/4P
17	Tapping motor model no.		/	/	/				3kW/4P
18	Total power		kW	3			6
19	Dimension(LxWxH)		MM	1200x68x1600
20	Weight		KG	700			750

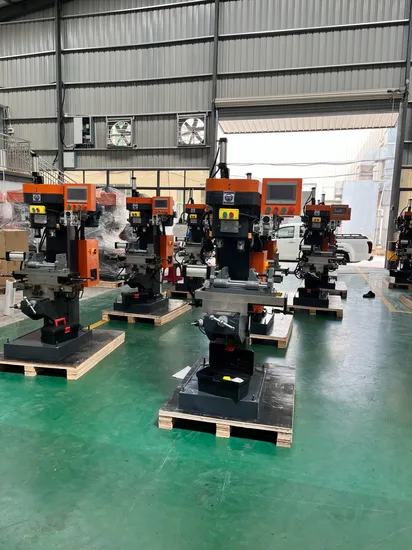

III.Production workshop
IV.Package and Loading
Quanzhou Yueli Automation Equipment Co.,Ltd was founded in 2013,which covers an area of 3000 square meters. The company is located at the China Plumb Town--Nanan, Fujian. It is a production enterprise lead by drilling tapping compound machine, drilling tapping centers and drilling tapping milling process center. The company is committed to serving various of industries such as sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing and so on.
If you have any interest, pls feel free to contact at any time.

---
