Tennis court fence netting aluminum wire mesh for decoration

Product Description

Product Description

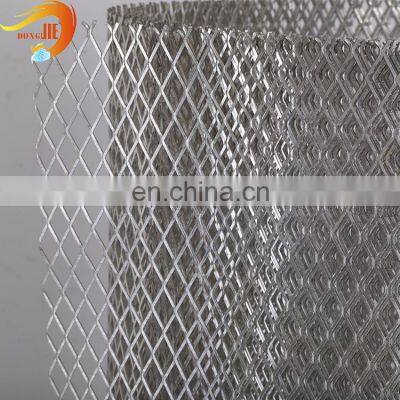

Expanded Metal Mesh
Expanded Metal is manufactured in 2 ways - Flattened and Raised.
Raised Expanded metal, also referred to as standard expanded metal, is the format of steel, aluminum or stainless steel after it has been put through the expanding press. The shearing and stretching of the expanding process creates strands and bonds that are set at a uniform angle to the plane on the sheet. This adds strength and rigidity to the material, while providing a directional skid-resistant surface.
Flattened Expanded metal is manufactured by passing the raised expanded sheet through a cold roll reducing mill. This turns the strands and bonds down to provide a flattened surface, reducing the thickness (gauge) and elongating the pattern. Expanded Grating is milled in a similar manner to expanded metal.
Ask for a Quote >>>>>>

Expanded Metal Mesh Specifications
Stytle	LBS.PER4 X 8 Sheet		Design Size(IN.)		Strand Width(IN.)	Overall Thickness(IN.)	%Open Area
Stytle	Plain	Galv.WT	SWD	LWD	Width	Overall Thickness(IN.)	%Open Area
3/16''#22	18.0	N/R	0.203	0.500	0.047	0.070	55
3/16''#20	29.0	N/R	0.203	0.500	0.063	0.080	40
1/4''#20	27.5	N/R	0.312	1.000	0.072	0.130	54
1/4''#18	36.5	N/R	0.312	1.000	0.072	0.130	54
5/16''#20	18.0	N/R	0.333	1.000	0.063	0.125	60
5/16''#18	33.0	N/R	0.333	1.000	0.094	0.170	48
1/2''#20	14.0	16.0	0.500	1.200	0.072	0.140	80
1/2''#18	22.5	27.0	0.500	1.200	0.088	0.172	72
1/2''#16	27.5	31.0	0.500	1.200	0.087	0.175	65
1/2''#13	47.0	55.0	0.500	1.200	0.096	0.204	57
The above specifications for your reference,we can make according to your requirement.
