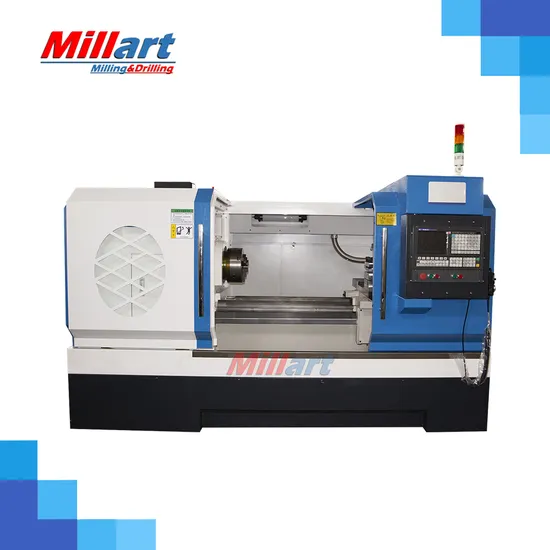

High Precision CNC Lathe Machine Ck6150, Horizontal Metal Flant Bed CNC Lathe Machine

Product Description

Product description:
Technical parameter :
Specifications

Model		CK6150
Scope of work	Max. swing over bed	φ500mm
	Max. swing over cross slide	φ290 mm
	Max. processing diameter	φ500,φ460*mm
	Distance between centers	1000mm
	X axis travel	290mm
	Z axis travel	920 mm
	X axis fast movement	6m/min
	Z axis fast movement	8m/min
Spindle	Spindle nose	A28
	Spindle hole	φ82mm
	Spindle taper	φ90,1:20mm
	Spindle speed	45~1600rpm
	Gears of spindle speeds	Mechanical 3 gears, stepless within the gears
	Spindle maximum output torque	534Nm
	Spindle motor power	7.5kw
	chuck size	Φ250 mm
Tool Holder type		Vertical 4 station
tool size	External round cutter	25X25mm
	Boring bar diameter	25×32mm
Center height (from bed foot)		1085mm
accuracy	Positioning accuracy	≤0.01
		≤0.015
	Repeat positioning accuracy	≤0.01
		≤0.010
	roundness	0.007mm
	Diameter uniformity	0.03/300mm
	Flatness	≤0.02/diameter300
	Surface roughness (steel parts)	Ra13.2μm
Tailstock	Dia.of tailstock sleeve	φ75 mm
	Travel of tailstock sleeve	150mm
	Taper of tailstock sleeve	MT5
Machine weight(without package)		2280kg
overall dimensions		2600*1410*1540mm

Standard accessories:
Fanuc 0I Mate TD controller
inverter motor 7.5kw
4 station electric turret
250 mm manual chuck
manual tailstock
integrated automatic lubrication system
coolant system
lighten system
Auto chip conveyor
Optional accessories:
servo motor 7.5/11 kw
inverter motor 11 kw
6 station or 8 station electric turret
10″Non-through hole hydraulic chuck
10″through hole hydraulic chuck
10″Non-through hole hydraulic chuck (Taiwan)
10″through hole hydraulic chuck(Taiwan)
steady rest
Follow rest
Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
