Lws Avocado Oil Tricanter Decanter Centrifuge with Motor Bearing Gear Pump for Avocado Oil Separation

Product Description

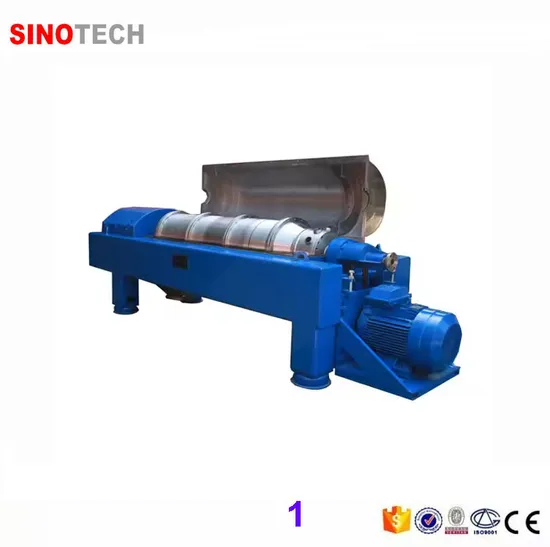

Product Description High Capacity Low Price Sludge Dewatering Decanter Centrifuge Tricanter CentrifugeThe LW horizontal screw centrifuge is a new type of two-phase horizontal screw centrifuge mainly suitable for (two phase )liquid-solid separation .
Our decanter centrifuge can used in soy protein separation plant .waste water treatment plan .and also applicable separation of liquid-solid from the olive oil,fish oil,avocado oil , coconut oil and so on .
This centrifuge can continuously produce with a high production capacity and small energy consumption per unit,but also has the best separation effect,minimum material loss,most convenient operation and most economical installation and maintenance costs,the new light and heavy liquid phase distribution devices and reliable labyrinth seal structure are used to achieve the best oil and water separation,the advanced slag-discharge structure is also used to achieve the continuous and smooth solid phase slag discharge avoiding the occurrence of blocking materials ,while eliminating solid phase and water mixing in downtime.
After the decanter's drum and screw conveyor start to full speed.due to the high speed rotating generating a strong centrifugal force,Material from the feed pipe through the feed hole spiral cylinder into the drum,into the drum under the action of centrifugal force,larger specific gravity solid phase sink attached to the drum wall,forming an annual layer of solid phase,Screw conveyor under the action of the differential mechanism(The differential is to ensure the stability of differential speed device,dual frequency adjust speed devices shared bus,achieved drum speed and differential speed stepless adjustable,can adapt to changes in the flow, concentration,to ensure a good and stable separation effect ,spiral and drum produces a constant differential speed.The solid sediment dehydrated from the small end of the cone drum slag outlet launched,the proportion of light clear liquid from the cylinder end of the overflow overflow.So a continuous feeding, separation, slag, water, to achieve continuous separation effect.

Product Parameters

Bowl ID (mm)	Bowl Speed (rpm)	L / D	G - Force	Capacity (m3/h)	Solids Removal (m3/h)	Primary Motor (Kw)	Weight (Kg)	Dimension (mm)
250	4500~4600	3.0~5.0	2000~3500	3~5	0.4	11	760	1600×1100×850
300	4000~4600	3.0~5.0	2000~3500	3~15	0.8	11~15	1500	2470×1230×850
360	3200~4200	3.0~5.0	2000~3500	5~20	1.2	5~22	2000	2790×1300×880
400	3200~3900	3.0~4.8	2000~3500	5~30	2	18.5~30	2600	2950×1400×850
450	3000~3700	3.0~5.0	2000~3500	5~45	2.5	22~37	3200	3300×1500×920
500	2700~3450	3.0~5.0	2000~3500	10~80	5	30~55	5200	3730×1600×1100
550	2600~3300	3.0~5.0	2000~3500	10~90	6	45~75	6900	4000×1400×1600
600	2500~3200	3.0~5.0	2000~3500	20~95	7	37~90	7900	4200×1800×1350
650	2400~3100	3.0~5.0	2000~3500	20~105	8	37~90	8200	4300×1900×1350
750	2200~2900	3.0~5.0	2000~3500	30~120	12	55~135	12000	5000×2500×1500
900	1800~2600	3.0~5.0	2000~3500	40~180	16	75~160	18000	6500×2700×150
