High Pressure Concrete Pump Trailer Pump with Diesel or Electric Engine

Product Description

Product Description

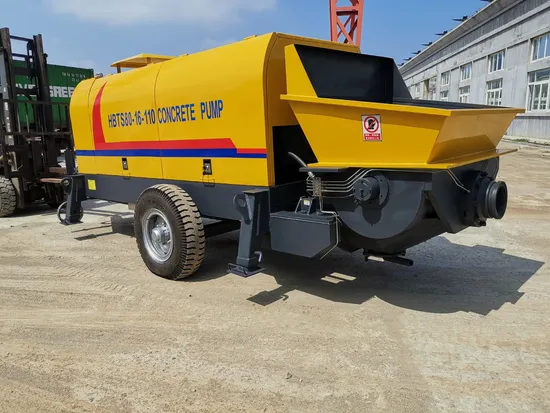

HBTS60R Concrete Trailer Pump
1. Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with two pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also much higher as well as the components' life is prolonged greatly. This is convenient for judging and removing trouble 2. The electric control system is simplest, the element quantity is fewest and its reliability is highest. The wire remote equipment is convenient for operation far away.
3. The design of hopper and S valve and so on adopt I-DEAS software to caculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage
4. The hydraulic circuit will take high oil into double distributor, and then the lubricating part can obtain hydraulic oil. It ensures the lubrication of the concrete cylinder's piston and other parts and prolongs the life of piston and other sealings
5. The radiator equipment makes the working oil temperature of hydraulic system below 70ºC and makes the machine in normal status
Product Details

Item	Unit	HBTS60R
Max. theo. concrete output (L/H)	m3/h	80/40
Max. concrete pumping pressure(L/H)	MPa	13/7.6
Distribution valve type		S Valve
Concrete cylinder (diameter*stroke)	mm	Ф200*1,650
Hopper capacity*feeding height	L*mm	680*1,400
Outlet diameter	mm	Ф180
Inside diameter of delivering pipe	mm	Ф125
Dimensions (L*W*H)	mm	5,800*2,000*1,750
Total weight	kg	5,800

Brand of main parts

Oil pump	Korean Kawasaki
PLC	Japanese OMRON
Hydraulic pipe	Italy Manuli
Seal	American Parket
Electric control elements	French Schneider
Intermediate relay	French Schneider
Control mode	Remote Control

Packing&Shipping


Our Projects
After-sales Service
* According to your inquiry, We will reply to you in 24 hours.
* Machine installation and test running
* Operators trainning and spare parts supply
* Machine problems solving (by phone or job site visiting)

---
