Sc Series Shunt Capacitors High\Low Voltage

Product Description

SC

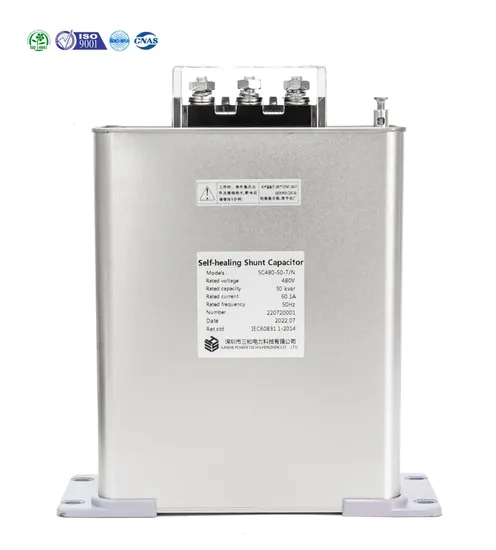

Series Low Voltage Self-healing Shunt Capacitor
Rated Voltage:200-800v
Rated Frequency: 50\60HZ
Function: Replenish the reactive power of the system,achieve the goal of increasing the power factor and improving the electric energy quality .
Application: Suitable for low-voltage power distribution system
Introduction
Shunt capacitors are mainly used to compensate reactive power, increase power factor and improve power quality. The internal structure of capacitor is made of high quality polypropylene film or metallized film medium,the capacitors has built-in discharge and protection devices.
Competitive Advantage
Overvoltage capability 1.1Un
Overcurrent capability 1.37In
Temperature range -40ºC-+55ºC
Design life>25years
Design Selection

System voltage	System harmonics	Resistance	Rated line voltage	Electrical wiring	Single Capacitor capability
0.38kV	No harmonic	-	0.45kV	Three-phase compensation wiring	Cylinder≤40kvar square≤50kvar
	5 times or more	0.07	0.48kV
	3 times or more	0.14	0.525kV
	5 times or more	0.07	0.28kV	Phase-split compensation Y wiring	Single-phases20kvar Three-phases30kvar
	3 times or more	0.14	0.3kV
0.66kV	5 times or more	0.07	0.815kV	Three-phase compensation wiring	Cylinder≤30kvar squares50kvar
	3 times or more	0.14	0.88kV
6kV	No harmonic	0.01	6.3kv	Three-phase compensation Y wiring	25kvar-500kvar
	5times or more	0.06	6.6kV
	3 times or more	0.12	7.2kV
10kV	No harmonic	0.01	10.5kV
	5times or more	0.06	11kV
	3 times or more	0.12	12kV

Technology Specification

System voltage≤1000V,technology parameter of capacitor
Rated capability:	5kvar-50kvar
Rated frequency:	50Hz or 60Hz
Average dielectric loss power:	≤1W/kvar
Work temperature:	-40/D (+55C)
Capacitor structure:	Single-phase or three-phase
Shell material:	Single-phase or three-phase
Executive standard:	GB/T 12747

System voltage≤1000V,technology parameter of capacitor
Rated capability:	25kvar-500kvar
Rated frequency:	50Hz or 60Hz
Average dielectric loss power:	≤0.2W/kvar
Work temperature:	-40/D(+55C)
Capacitor structure:	Single-phase or three-phase
Shell material:	Single-phase or three-phase
Executive standard:	GB/T 11024

Special requirement can be customized!

---
