WMT pillar type vertical drilling Z5150B vertical drilling machine price

Product Description

Product Description
WMT pillar type vertical drilling Z5150B vertical drilling machine price main features:
1. Drilling, milling and tapping.
2. Headstock and worktable up and down perpendicularly.
3. Head swivels 360° horizontally.
4. Gear driven, lower noise.
5. Positive spindle lock.

Specification	Z5150B
Max. drilling diameter	50mm
Max taping capacity	M30X3
T-slot size(NxWxD)	3-18/150 mm
Spindle taper	MT5
Stroke of spindle quill	250mm
Spindle box travel(manual)	200mm
Spindle speed step	12 steps
Spindle speed range	31.5-1400rpm
Spindle feed step	9 steps
Spindle feed range	0.056-1.80mm/min
Worktable size	560x480mm
Vertical travel	300mm
Max. distance between spindle and table surface	750mm
Main motor power	3kw
Motor of cooling pumps	40w
Speed of cooling pumps	25L/min
Maximum spindle feed resistance	16000N
Maximum spindle torque	350N.m
Overall size	1090x910x2465mm
Net weight	1300kg
Min.distance from spindle axis to column	335mm

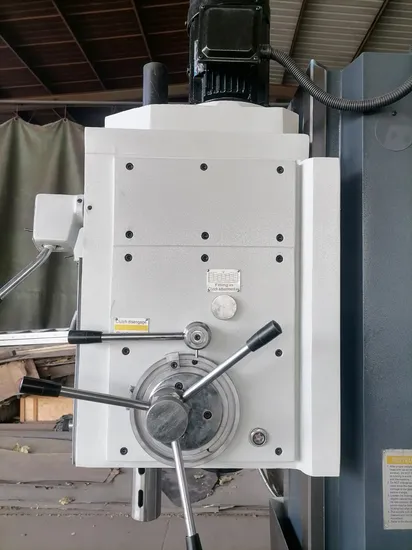

Detailed Photos
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
