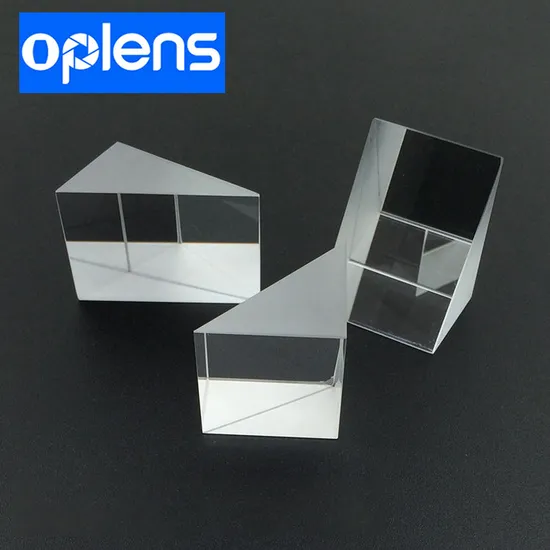

High Quality Imagine H-K9l UV Coating Lens Fused Silica Right Angle Prism

Product Description

High Quality Imagine H-K9L UV Coating Lens Fused Silica Right Angle Prism
What Is Optical Prism? Optical prism, a transparent object surrounded by two planes that intersect but are not parallel to each other, used to split or disperse light beams. Prisms are polyhedrons made of transparent materials (such as glass, crystal, etc.). It is widely used in optical instruments.
Right angle prisms are used to deflect a beam of light through 90 or 180 degrees. This can be used as component to create various optical devices.BK-7 can be used for a range between ultraviolet and infrared light.Optical Prism Application?In modern life, prisms are widely used in digital equipment, science and technology, medical instruments and other fields.
Optical Prism for Image: cameras, CCTVs, projectors, Optical Prism for Camera, digital camcorders, CCD lenses and various optical equipment;
Science and technology: telescopes, microscopes, levels, fingerprints, gun sights, solar energy converters and various measuring instruments;
Medical equipment: cystoscope, gastroscope and various laser treatment equipment.

Product Name	Right Angle Prisms
Material	H-K9L/UV Fused Silica,customized
Diameter tolerance	0/-0.1mm
Clear Aperture	>90%
Angle tolerance	90°±3",45°±1′
Surface Quality	40/20
Surface Flatness	λ/5
Bevel	Protective bevel as needed
Coating	Upon customer request

Feature:Optical Prism Types According to the shape can be divided into the following: Right Angle, Dove, Rhombic, Penta Prism and special shaped prisms. We can custom optical prism according to your needs.
There are mainly four types of prisms according to their functions, dispersive prisms, deflecting or reflecting prisms, rotating prisms, and offset prisms. Deflection, offset, and rotation prisms are commonly used in imaging applications; diffuser prisms are designed for use with dispersive light sources and are therefore unsuitable for any application requiring high-quality images.
FAQ? Q1:Can you send me free samples or Can i have an sample order ?
A: Yes, We accept sample orders, and we're also willing to send you free sample to test and check its quality . if we don't have the item in stock , then you could place an sample order.
Q2: How many days can i get my package after placing order?
A: If the order needs customized also the quantity is big. it will take around 10-30 wroking days to produce then shipping.
Q3: OEM services available?
A: Sure, please send us your design paper on platform to confirm more details information.
Q4:We have a commercial project,Can you help me offer an optical design solution ?
A:Yes, we have professional experts who are engaged in optical design for many years , please send us more detail of your project,we will supply our most suitable solutions for you.
Q5: What shipping methods do you have?
A: For small quanities or sample could by express such as: Fedex, UPS, DHL, EMS, etc. Large scale quantity in your demands:by sea/train ,or by air.In your requests.

---
