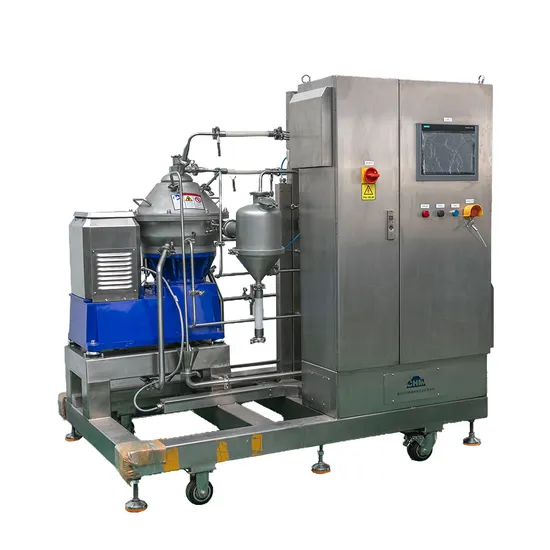

Biological Fermentation Mash Centrifuge Separator

Product Description

Welcome to Changzhou Qianmai Mechanical Equipment Technology Co., Ltd (CHM) CHM is a leading company specializing in the development, testing, manufacturing, sales, and after-sales service of disc separators. With over 30 years of experience, our team of experts can tailor separation solutions for customers in the pharmaceutical, biomedicine, and biochemical industries. We also offer timely and efficient preventive maintenance, troubleshooting, repair, machine refurbishment, and upgrade services.
Product Description
The Separator operates on the principle of separating multiple phase materials with different densities and indissolubilization in a suspended liquid. By rapidly rotating the disc stack, a powerful centrifugal force is generated, allowing for efficient separation of differential phase materials in a short amount of time.
Company Name: Changzhou Qianmai Mechanical Equipment Technology Co., Ltd
Disc Separator by Changzhou Qianmai Mechanical Equipment Technology Co., Ltd
Disc Separator Discover the innovative disc separator by Changzhou Qianmai Mechanical Equipment Technology Co., Ltd, offering a range of advantages:
No filter media consumption, eliminating secondary pollution
Continuous and stable operation
Fast processing speed
Effective treatment
Low energy consumption
Moderate capacity
SIP and CIP functions
Small footprint
Low operating cost
High automation, reliable operation, low labor intensity
Explore the Disc Separator separation module system diagram for a detailed overview of its functionality.
Product Description
Product Description
Separator for Efficient Liquid/Solid Separation Our separator, designed by Changzhou Qianmai Mechanical Equipment Technology Co., Ltd, is highly efficient in separating liquid/liquid/solid three-phase and liquid/solid two-phase materials.
Key Features:
Separates non-emulsified liquid particles as small as 2μm
Efficiently separates solid particles, including cell debris, of 0.5 microns or smaller (density above 1.02g/ml)

Benefits:
Enhanced separation efficiency
Precise separation of fine particles
Optimal performance in various liquid/solid separation processes

Cell Collection Equipment for Fermentation Industry Welcome to Changzhou Qianmai Mechanical Equipment Technology Co., Ltd
DFBS and DQBS Series Separation Equipment Cell collection is essential in producing fermented drugs. The choice of separation equipment impacts product quality, yield, and processing costs. Our DFBS and DQBS series models are tailored for the biological fermentation industry, meeting GMP and CIP/SIP requirements.
Key Features:
High separation G force up to 14500G for efficiency and stability
Customizable design options, including single or modular separators
Typical Applications:
Concentration and clarification of fermented mash (e.g., escherichia coli, bacillus, probiotics)
Extraction of vitamins, antibiotics, hormones
Collection of microbial cells
Separation and concentration of yeast
Extraction in genetic engineering, Chinese medicine, pharmaceuticals
Trust Changzhou Qianmai for reliable separation technology in the fermentation industry.
Product Parameters

Model	Treatment Capacity (L/H)	Motor Power (KW)	Inlet Pressure (MPa)	Outlet Pressure (MPa)	Weight (KG)	Overall Dimensions (mm)
DFBS260	200-500	2.2	0.05-0.1	≤0.3	260	620*510*1400
DQBS260	700-1500	3	0.05-0.1	≤0.3	280	620*510*1400
DQBS350	1200-2500	5.5	0.05-0.1	≤0.4	450	620*510*1200
DFBS410	2000-4000	11	0.05-0.1	≤0.4	1250	1600*1200*1500
DQBS470	3000-6000	22	0.05-0.1	≤0.4	1670	1850*1550*1800
DFBS550	2000-4000	22	0.05-0.1	≤0.4	2100	1980*1610*1950

Company Profile Packaging & Shipping FAQ Welcome to Changzhou Qianmai Mechanical Equipment Technology Co., Ltd. Explore our Blue Biological Fermentation Mash Separator for efficient separation in various industries.
Product Description
Welcome to Changzhou Qianmai Mechanical Equipment Technology Co., Ltd Are you in need of reliable mechanical equipment technology solutions? Look no further than Changzhou Qianmai Mechanical Equipment Technology Co., Ltd. With over 30 years of experience, we offer customizable products and services to meet your specific requirements.
Key Features:
Expert team with over 30 years of experience
Customizable products and services
One-stop service from research to upgrade
24/7 online after-sales support
Visit Us: If you're interested in visiting our factory, we can assist with the route or arrange a pick-up from Changzhou airport or train station. For virtual visits, we offer video conference calls to showcase our facilities.
Payment and Delivery: We accept T/T payments with flexible terms for both new and regular customers. Our delivery terms include EXW, FOB, CFR, CIF, DDU, tailored to your purchase order. Delivery time varies based on product types and quantities, with expedited options available for urgent needs.
Warranty and Support: All our equipment comes with a standard 1-year warranty, with additional instructions for special circumstances. In case of damaged parts or malfunctions, our experienced after-sales team is available 24/7 to provide technical support, troubleshooting, and spare parts replacement within the warranty period.
Contact us today to explore our innovative solutions for your mechanical equipment needs!

Application	Model	Treatment Capacity	Motor Power	Inlet Pressure	Outlet Pressure	Weight	Overall Dimensions
		(L/H)	(KW)	(MPa)	(MPa)	(KG)	(mm)
Animal Fat/Plant Oil	DQRE260	700-1500	3	0.05-0.1	≤0.3	280	620*500*1100
	DQBE260	1000-2000	3	0.05-0.1	≤0.4	280	620*510*1200
	DFBE350	1200-2500	5.5	0.05-0.1	≤0.4	450	620*510*1200
	DFHE450	3000-4000	11	0.05-0.1	≤0.4	1450	1850*1550*1800
	DFHE610	6000-10000	22	0.05-0.1	≤0.4	2180	1980*1610*1950
Food/Beverage/Dairy	DQRP260	200-500	2.2	0.05-0.1	≤0.3	260	620*510*1400
	DQHN260	700-1500	3	0.05-0.1	≤0.3	260	620*510*1400
	DQBP350	1200-2000	5.5	0.05-0.1	≤0.4	450	620*510*1200
	DQBN380	2000-3500	7.5	0.05-0.1	≤0.4	1250	1600*1200*1500
	DQBN410	2000-4000	11	0.05-0.1	≤0.4	1250	1600*1200*1500
	DQHP510	3000-5000	15	0.05-0.1	≤0.4	1670	1850*1550*1800
	DFHP610	6000-10000	22	0.05-0.1	≤0.4	2100	1980*1610*1950
Biological Fermentation	DFBS260	200-500	2.2	0.05-0.1	≤0.3	260	620*510*1400
	DFBS260	700-1500	3	0.05-0.1	≤0.3	280	620*510*1400
	DFBS350	1200-2500	5.5	0.05-0.1	≤0.4	450	620*510*1200
	DFBS410	2000-4000	11	0.05-0.1	≤0.4	1250	1600*1200*1500
	DFBS510	3000-5000	15	0.05-0.1	≤0.4	1670	1850*1550*1800
	DFBS610	6000-10000	22	0.05-0.1	≤0.4	2100	1980*1610*1950
Industrial Waste Liquid	DFBY200	200-1000	0.37	0.05-0.1	≤0.3	80	500*600*1200
	DFBY260	700-1500	3	0.05-0.1	≤0.3	260	620*510*1400
	DFBY260	1000-2000	3	0.05-0.1	≤0.4	280	620*510*1200
	DFBY350	2000-3000	5.5	0.05-0.1	≤0.4	450	620*510*1200
	DFBY410	3000-4000	11	0.05-0.1	≤0.4	1600	1850*1550*1800
Chemical Liquid Coal Tar Marine/Mineral Oil	DFBY510	3000-5000	15	0.05-0.1	≤0.4	1670	1850*1550*1800
	DFHY610	6000-10000	22	0.05-0.1	≤0.4	2100	1980*1610*1950

---
