Product Description
Product Description

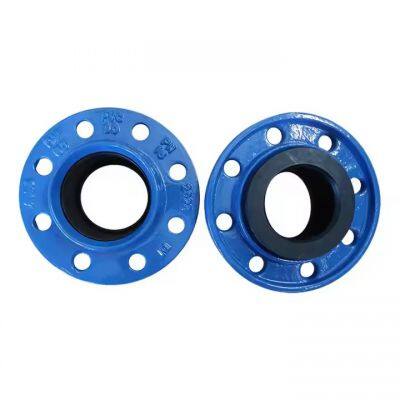

Quick adaptor for PVC pipes
Enables mechanical jointing of a flange and a pipe
Description
High performance:
- Guaranteed sealing with shut-off seal and antiflow ring.
- Corrosion protection: epoxy powder coating.
| PN10/16(Multi Flange Holes) |
| SIZE | PIPE OD | WEIGHT(Kg) |
| DN50 | 63 | 2.42 |
| DN60/65 | 75 | 3.08 |
| DN80 | 90 | 3.96 |
| DN100 | 110 | 4.40 |
| DN125 | 125 | 5.17 |
| DN125 | 140 | 5.28 |
| DN150 | 160 | 7.59 |
| DN200 | 200 | 10.56 |
| DN250 | 250 | 12.65 |
| DN300 | 315 | 15.07 |
| DN400 | 400 | 26.40 |
1.Material Specification:
| Body | Ductile Iron |
| Ring | Brass |
| Gasket | EPDM |
| Flange Drilling | PN10/PN16 |
| Coating | FBE |
2.Application:
DI QUlCK Flange Adaptor can be applied to Ductile Iron Pipe,Cast Iron Pipe,Steel Pipe,and ect..Brass Ring will fasten the pipe.Without Brass ring ,this kind of quick flange adaptor can be used for PVC Pipe.
3.Feature:
1.The quick adaptors only need the gasket or the gasket + copper ring, sliding into the end of the
connecting pipe socket to realize quick installation and connection.
2.Under certain conditions, it can replace universal flanged adaptor or Straight flanged adaptors, and the cost are lower, but the detachable performance is slightly worse.
>>
