Cloudengine S5735-L8P4S-A-V2 98011986 8*10/100/1000base-T Ports 98011986 Ethernet Switch

Product Description

Product Description
S5735-L8P4S-A-V2 (8*10/100/1000BASE-T ports, 4*GE SFP ports, PoE+, AC power) Item Details

Description	S5735-L8P4S-A-V2 (8*10/100/1000BASE-T ports, 4*GE SFP ports, PoE+, AC power)
Part Number	98011986
Model	S5735-L8P4S-A-V2
First supported version	V600R022C01

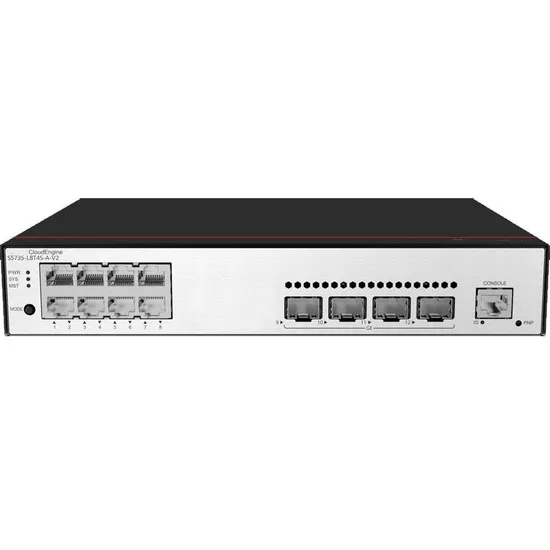

Detailed Photos


Product Parameters

Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320.0 mm x 210.0 mm (1.72 in. x 12.6 in. x 8.27 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320.0 mm x 217.0 mm (1.72 in. x 12.6 in. x 8.54 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 465.0 mm x 380.0 mm (3.54 in. x 18.31 in. x 14.96 in.)
Chassis height [U]	1
Weight without packaging [kg(lb)]	2.23 (4.92)
Weight with packaging [kg(lb)]	3.05 (6.72)
Typical power consumption [W]	22.42
Typical heat dissipation [BTU/hour]	76.5
Maximum power consumption [W]	- Without PoE: 27.59 W - Full PoE load: 173.15 W (PoE: 125 W)
Maximum heat dissipation [BTU/hour]	- Without PoE: 94.14 - Full PoE load: 590.81
MTBF [year]	69.71
MTTR [hour]	2
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	47
Noise at normal temperature (acoustic pressure) [dB(A)]	35
Number of card slots	0
Number of power slots	0
Number of fans modules	1
Long-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F).
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	AC input: 100-240 V AC; 50/60 Hz
Input voltage range [V]	AC input: 90-290 V AC; 45-65 Hz
Memory	2 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
Console port	RJ45
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection [kV]	Differential mode: ±6 kV; common mode: ±6 kV
Types of fans	Built-in
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from left and front, air exhaustion from right
PoE	Supported
Certification	EMC certification Safety certification Manufacturing certification
