Good Selling Ecd-6D. a Single Speed Industrial Wireless Forklift Crane Remote Control for Hoisting Equipment

Product Description

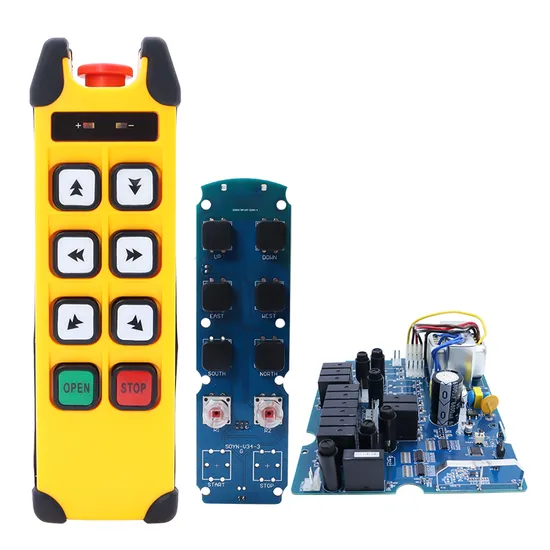

INDUSTRIAL REMOTE CONTROLECD-6D.A: 6 double speed buttonsStrong penetrating powerWhether it's powering on/off or action commands, it can quickly respond and enjoy the convenience of wireless control.Product Parameters

Model	ECD-6D	ECD-6D.A	ECD-8D	ECD-10D	ECD-12D
Button	6 double speed buttons	6 double speed buttons	8 double speed buttons	10 double speed buttons	12 double speed buttons
Protection level	IP68
Corrosion protection grade	WF2
Transmit power	≤10MW
Rated power of receiver	≤6MW
Response time	≤20MS
Channel spacing	25HZ
Moulation mode	GFSK
Signal transmission rate	9600BIT/S
Signal reception sensitivity	-115DBM
Function customization	Accepted
OEM/ODM	Accepted
Working humidity range	0~97%RH
Adaptive temperature	-40°C~+85°C
Button life	12 million times
Shell material	PA66+ high quality fiber
Transmitter supply voltage	DC 1.8-3.6V
Receiver supply voltage	AC/DC 12V-65V AC/DC 65V-440V
Transmitting frequency	315MHZ/433MHZ/868MHZ/915MHZ
Remote control distance	225 Meters/Can be customized to 5km

Product Description
Detailed Photos1. Stable Signal and Strong Penetration
The signal is stable and penetrating, and can work normaly in complex environments.2. IP68 Waterproof
IP68 waterproof and dustproof, it can be used normally in harsh environments such as high oil pollution and high temperature.3. Emergency Stop
Pressing the red button emergency stop device meets user's safety requirements.4. Dual Speed Button
The two-speed button is pressed once for low speed and twice for fast speed.The combination of fast and slow gives you more choices.5. Circuit Board
High specification circuit board, improted chip keypad, strictly tested, quality assurance.6. Pure Copper Cable
With high purity copper conductors and connection ports, high transmission efficiency.
Our Advantages
1. Designed with a battery voltage warning device, it automatically shuts off the circuit when the voltage is insufficient.
2. Adopting intelligent wireless technology to design circuits, with strong penetration and signal fearless interference.
3. The remote control casing is made of PA66 and high-quality fiber, which is one-time die-cast, comfortable to touch, and resistant to falling and pressure.
4. The remote control relay adopts the American brand TE, which is a leader in the relay field, with over 14000 global technology patents and decades of experience in relay development and production, ensuring excellent product quality.
5. The main chip of the remote control adopts Texas Instruments (TI) and South Korean ABOV brands, providing customers with high energy efficiency, ultra stable, and ultra safe semi conductor solutions and product services. It adopts a low-power design method and can be used normally for up to one month.
6. The remote control button adopts the world-renowned Alpine brand, with a unique structure, optimized materials, advanced technology, comfortable touch, and long service life. The embedded parts, base parts, spring parts, button parts, and cover parts of the button all use the best materials and processing technology to ensure the overall quality of the button, ensuring a service life of 12 million times, sensitive contacts, and quick response.
7. The remote control transistor adopts the Japanese brands of RENESAS and ROHM. As a leading manufacturer of microcontrollers and analog power devices worldwide, RENESAS and ROHM have taken the forefront in product solutions and system solutions.
Customisable Sections
1. L0G0 Customization
LOG0 styles can be designed and formulated according to customer needs.
2. Button Customization
Button icons are available in a variety of styles for customers to choose from and can be customized as needed.
3. Function Customization
The number of buttons, single and double speeds, and some functional requirements can be customized.
4.Control Distance Customization
The standard control distance of the product is 225 meters in open areas. Longer remote control distances can be customized according to needs.
5. Linkage Customization
One transmitter can be customized tocontrol multiple receivers according to customer needs, or multiple transmitters can control one receiver. Applications Scenarios
Focus on Every Detail Convergent, atmospheric, simple design, PA66 material body forming. Reasonable layout of emergency stop, start keys and function keys, Ergonomic design fits the shape of the human hand. With the industrial remote control system, workers can hold the portable transmitters on hand, walk freely and choose the best position to operate. lt makes the working environment be safer, reduces the injury accidents and saves manpower cost during the operation. With remote control, the operator can finish various tasks independently, which will improve the working efficiency. Aplication of Industrial Remote Control lt can be used in most fields. At present, the ECD remote control system is mainly used in eight fields: lifting machinery, construction machinery, port machinery, engineering machinery, industrial customization, agricultural and forestry machinery, computer numeri-cal control machine tools, explosion-proof machinery, and special vehicles, such as cranes, engineering machinery, lifting platforms.travelling vehicles, hydraulic equipment, automobile tail boards,break down trucks, conveyor belts, industrial equipment androbots. Packaging & Shipping
Company Profile
HENAN NOMI ELECTRONIC TECHNOLOGY CO., LTD, is located in Zhengzhou Airport Intelligent Manufacturing Industrial Park, Henan Province. It is a technology development enterprise integrating R&D, design, manufacturing, operation and sales. Nomi Electronics has long been focusing on the R&D and practice in thefield of industrial wireless remote control. After years of development, it has become aleading enterprise in the field of industrial remote control, which integrates independent research and development, technical consultation and system integration, and integrates remote control and intelligence of equipment.
The company continues to deepen the field of wireless remote control, helping the industry to develop in asmarter, more efficient and safer direction Nomi Electronics regards "creating brilliance, only quality" as its business principle and "always providing safe and reliable industrial wireless remote control products" asits enterprise mission. Committed to developing safe, reliable, durable, andhigh-quality industrial wireless remote control equipment, improving work efficiency and providing operators with a more convenient and safer operating environment. Inindustry, construction, forestry, mining, etc. The field realizes the perfect unification of mechanical equipment and intelligent control.
1.QUALITY
Good material makes a good quality, we have been guided by the principle of quality first.
2. ODM & OEMWe support ODM /OEMservice, can better satisfy the customers.
3. SERVICE
We meet all the needs of customers,customer-oriented, for customers tosolve practical problems.
FAQ
1.What is your minimum order and payment method? We can accept sample orders for trial orders. T/T100% for less than USD 10,000, and T/T 50% can be used for more than 10,000 US dollars.2. Will you provide after-sales service?
Of course
1) all products are subject to strict factory quality inspection before packaging.2) all the products are packed in our factory, and the second package is delivered byexpress delivery before shipment.3) if there are any problems during operation or installation, please contact us freelyand we will solve them with professional guidance.3. ls there a warranty?
Of course. all our branded products have a 12-month warranty period. we provide24-hour after-sales service and technical support. if you find any problems during installation, please feel free to contact us.4. What certificates are approved for your product?
We have CE, FCC, RoHS, ISO9001 and so on.5. Can you customize it according to my needs?You can send me inquiries according to your needs. we can customize them with technical engineers.6. ls your price the lowest?
Do you mind the quality? The quality of our supply is value for money, inferior products will waste and affect the work process, why not choose a medium price towork well?7. ls the product 100% assembled?Yes, all the products are 100% assembled.

---
