Pig Cattle Poultry Chicken Pellet Machines Line for Animal Feed Mill Production

Product Description

Product Description

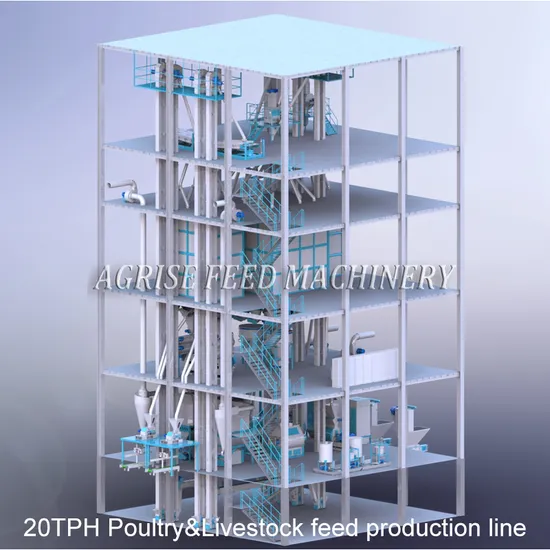

20tph Pig Cattle Poultry chicken pellet machines line plant for animal Feed Production
Namely, SZLH420 Feed production line(10TPH) x 2
The complete set feed plant mainly include below sections:
1.Raw materials receiving section,like corn,soymeal,etc. It include cleaner,magnet seperator,elevator,dust collecting system,etc
2.Raw material Crushing system,it include the hammer mill,dust collector,elevator,etc
3.Batching and Mixing section: It include batching bins,batching scales,feed mixer, oil /molasses adding system,elevator,etc
4.Pelleting and cooling system, it need steam which comes from boiler. It include feeding device,conditioner.
The cooler normally match with crumbler to get more different products. Like crumbler feed for chicken,etc
5.Sifting and packaging section: Vibration sifter will select out unqualified products and return to pelleting again. Qualified feeds production will be packed in different KG sacks to be sold in market or self-use.
20TPH Cattle pig chicken Poultry&livestock feed pellet machine
Description of SZLH series Gear driving Animal feed pellet machine
It is suitable for high-grade poultry & livestock feed pelletizing for large and medium-sized breeding and feed processing.
Features of SZLH series Gear driving Animal feed pellet machine
1. High precision gear direct-connecting driving is adopted for high efficiency and running stabilization.
2. Conditioner end is special sealed, axial steam spraying make material connect with steam more enough.
3. The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.
4. Ring die special design for low bulk density pelleting.
5. External discharging can be carried out by pulling out the external discharging lever arm of feed chute to prevent feed from entering the pellet chamber for the convenience of trial run and breakdown removal.
Detailed Photos
Final Product Show
Chicken Pellet Feeds
Chicken Crumber Feeds
Layer Mash feeds
Pig Pellet Feeds
Cattle Pellet feeds (With or without biomass/grass)
Pellet Machine Parameter

Model	Die dia (mm)	Main power(kw)	Conditioner power(kw)	Feeder power(kw)	Capacity(tph)
SZLH250	Φ250	22	2.2	0.55	1-3
SZLH320	Φ320	37	2.2	0.55	2-5
SZLH350	Φ350	55	2.2	0.55	3-6
SZLH420	Φ420	110	5.5/7.5	1.5	5-15
SZLH508	Φ508	132/160	11	1.5	12-18
SZLH558	Φ558	160/200	15/18.5	2.2	18-25
