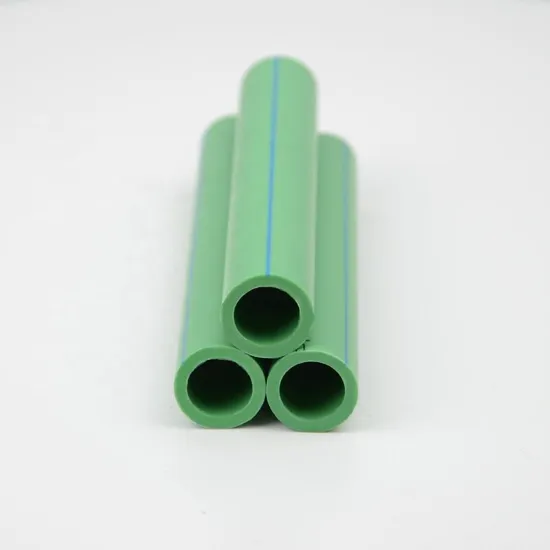

Factory Cheap Plastic PPR Pipe Fittings

Product Description

PPR (polypropylene) material is widely used in the field of water supply pipe manufacturing due to its high strength, corrosion resistance and non-toxicity.Because it does not corrode, it is an ideal pipe to replace ordinary iron water supply pipes.
1.High quality raw materials High quality raw materials, health and environmental protection, safety and non-toxic
2.Strong corrosion resistance Cold and heat resistance strong pressure resistance, long service life
3.Light weight, Light weight, can greatly reduce the construction intensity of workers
4.Thickened smooth wall pipe The inner wall is smooth, the friction is small, and the conveying speed is fast
5.Strong toughness The product has good toughness, high strength and excellent process ability
Details

Outer diameter DN (MM)	Average outer diameter (MM)		Pressure Level Wall thickness(mm)
	Min	Max	1.25MPA	1.6MPA	2.0MPA	2.5MPA	3.2MPA
12	12.0	12.3	/	/	/	2.0	2.4
16	16.0	16.3	/	2.0	2.2	2.7	3.3
20	20.0	20.3	2.0	2.3	2.8	3.4	4.1
25	25.0	25.3	2.3	2.8	3.5	4.2	5.1
32	32.0	32.3	2.9	3.6	4.4	5.4	6.5
40	40.0	40.4	3.7	4.5	5.5	6.7	8.1
50	50.0	50.5	4.6	5.6	6.9	8.3	10.1
63	63.0	63.6	5.8	7.1	8.6	10.5	12.7
75	75.0	75.7	6.8	8.4	10.3	12.5	15.1
90	90.0	90.9	8.2	10.1	12.3	15.0	18.1
110	110.0	111.0	10.0	12.3	15.1	18.3	22.1
125	125.0	126.2	11.4	14.0	17.7	20.8	25.1
140	140.0	141.3	12.7	15.7	19.2	23.3	28.1
160	160.0	161.5	14.6	17.9	21.9	26.6	32.1

Advantage:
1. High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.
2.Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.
Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.
3. Corrosion Resistant: resist chemical matters or electron chemical corrosion.
4. Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.
5. Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.
6. Long Life: more than 50 years under normal conditions.
7. Recycled and Environment-friendly.
Intended use
For interior hot and cold water distribution systems in buildings and floor & central heating systems, air ducts
PN 10 - cold water distribution and floor heating systems
PN 16 - higher pressure cold water distribution and DHW systems at lower pressures
PN 20 - hot water distribution systems, central heating
Application
1. Residential cool/hot water piping system.
2. Transport and discharge for industrial water and chemicals.
3. Piping system for purified water and drinking water.
4. Production line system of beverage and liquid medicine.
5. Solar heating and cooling equipment system.
6. Piping system for air compression.
7. Caliduct, floor and wall heating equipment.
8. Piping system for other industries and agriculture.
Relative products
Connection
Shipment:
FAQ: Q: What the Raw material ?
A: We only use 100% first raw material.
Q: What is your MOQ?
A: As customer's request.
Q: why choose us?
A: We are a professional pipe fitting factory, we have competitive price an faster delivery , and we also have the best quality.
Q: How to buy the product?
A: Contact with us by email or by Trade Manager, and inform us all information which you want, or tell us which kind of products you want? will contact you immediately, or we could recommend style to you.
Q:Can you put your Design and logo on product?
A:Yes, we have professional design service team, we can make any sample as your design, and also can put your logo on products.
Q:Still have a lot of questions?
A:Please feel free to contact with me ,welcome.

---
