Chile Hot Sale 1lyx-430 Tractor Trailed 4 Discs 1.2m Working Width Heavy Duty Pipe Disc Plough

US$1,500.00
2-9 sets
US$1,300.00
10+ sets

Basic Info.

Model NO.
1LYX-430
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
CE, ISO
Color
Red, Green, Yellow, Other Colors
Warranty
1 Year
Transport Package
Iron Crate Case
Specification
see attached specification list
Trademark
CYC
Origin
China
HS Code
8432100000
Production Capacity
5000 Sets / Month

Product Description

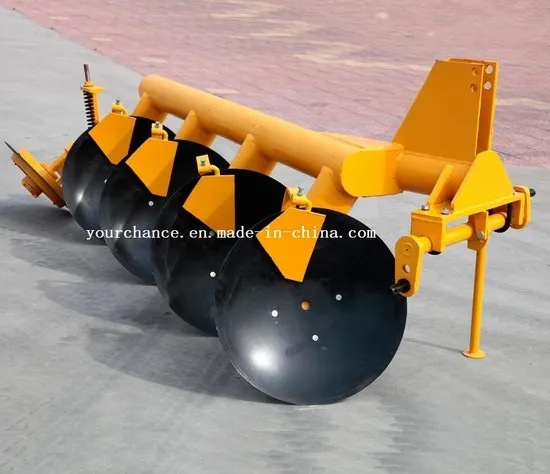

Chile hot sale 1LYX-430 Tractor trailed 4 discs 1.2m working width Heavy duty Pipe Disc Plough
Description of 1LYX Series Disc plough :
1LYX series of disc plough, also named Tube Disc plough, Pipe Disc plough. It is one kind Heavy-duty One-way Disc plough, It is used for deep ploughing in root-infested,sticky, stony and hard soils.
The machine is completely mounted with 40-150HP tractor. During operation,the discs by its rotating to turn the soil. Particularly,it is suitable for operation on the field with grasses,straw and stems of crops or plants, big soil resistance and with many stones and brickbat,etc.in the field. It is good at cutting the grasses, straw, free from being stopped by the grasses, soil or stones etc.
It is efficient in the work, good quality during operation, easy to adjust and strong, durable.
Main Features:
1.High carbon disc blade hardness:30-44 HRC, Assuring the toughness and ear ability of disc blade.
2.Frame type tubular seamless steel pipe.
3.In conformity with the soil conditions, it is being produced with 2-3-4-5 disc (bottom) version with an option for extra kit for converting it to extra disc plough.
Main Specification and Technical Parameter:
Model unit 1LYX-230 1LYX-330 1LYX-430 1LYX-530
Working depth mm 250 250 250 250
Working width mm 600 900 1200 1500
Quantity of disc pcs 2 3 4 5
Disc diameter mm 660 660 660 660
Overall weight kg 300 350 410 460
Matched power hp 40-50 55-80 90-120 120-150
Linkage Standard three point mounted

1LYX-430 one way Pipe disc ploug Main Feartures and Specification :
We manufacture 2-5 Pcs disc ploug for 40-140HP tractor :
Disc plough by Iron crate case packing :
High quality Disc plough have ISO,CE, PVOC COC, CO etc certificates:
1LYX-430 Disc plough details show:
Best price will be quoted for you as soon as receive your Requirement !
