Competitive Price CNC Machining Center Partslathe Milling Machine

Product Description

Competitive Price CNC Machining Center Partslathe Milling Machine
Product Description
Product Parameters

Model		TZ-V640	TZ-V850	TZ-V855	TZ-V1165	TZ-V1270
Worktable size L*W	(mm)	700x420	1000x500	1000x550	1100x530	1200x600
Work table Max. loading	kg	350	400	500	500	600
T-slots size (N×W×D)	mm	3x18x125	5x18x90	5x18x90	5x18x90	5x18x100
X/Y/Z axis travel	mm	600/400/450	800/500/500	800/500/550	1100/650/600	1200/700/700
X/Y/Z axis feed speed	m/min	48/48/48	48/48/48	48/48/48	48/48/48	48/48/48
X/Y/Z axis motor	kw	1.5/1.5/3 kw	2/2/3 kw	2/2/3 kw	2/2/3 kw	3/3/3 kw
X/Y/Z axis roller Guide	mm	30/30/35	35/35/35	35/45/45	35/45/45	45/45/45
Spindle taper		BT40	BT40	BT40	BT40	BT40
Max. spindle speed	rpm	12000	12000	12000	12000	12000
Spindle motor power	kw	7.5	7.5/11	7.5/11	7.5/11	11
Distance from spindle nose to workbench	mm	150-610	120-620	120-670	150-750	140-840
A.T.C capacity	pcs	24	24	24	24	24
Positioning accuracy (X/Y/Z)	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Re-positioning accuracy(X/Y/Z)	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Machine weight	kg	4300	5000	6000	6800	8100
Machine size (L*W*H)	mm	2000*2400*2600	2500*2250*2650	2600*2500*2650	2700*2500*2750	3100*2760*3100

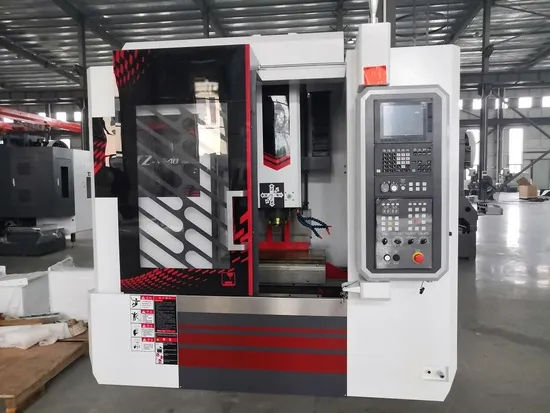

Picture of the machine

Main Parts		Branch/ Origin
CNC System		M80B Mitsubishi/ Japan
Spindle and three-axis servo motor		Mitsubishi/ Japan
Spindle		Dejiu TAIZ/ Taiwan
Ball screw		Yintai or Shangyin/ Taiwan (C3)
Screw bearing		P4NSK/ Japan
Rail		Yintai or Shangyin/ Taiwan (P)
A.T.C capacity		TAIZ or Deda/ Taiwan
Body casting		High density and high strength resin sand cast iron
Coupling		R+W\NBK / German
Electrical components		Franch
Handwheel pulse		East Test/Internal Security Control / Janpan
Pneumatic components		Taiwan AirTAC/ Japan SMC

Anoher Advantages
• Optimal processing conditions in an unrivaled production environment.
Our imported horizontal machining centers, vertical machining centers, CNC boring machines (featuring rotating tables), and gantry guideway grinding machines ensure top-notch workpiece accuracy. This significantly boosts assembly precision and extends the durability of operational accuracy.
• Cutting-Edge Detection Methods
Positioning accuracy is rigorously tested and finely adjusted using laser technology, strictly adhering to the German VDI3411 inspection specification (5 tests each).
Each machine tool undergoes stringent processing tests before leaving the factory, guaranteeing they meet and exceed actual processing accuracy requirements.
Product sample
• This CNC machine center seamlessly integrates milling, drilling, and tapping functionalities.
• Capable of CNC machining various metal profiles including aluminum, steel, copper, and non-metal materials.
• Highly applicable in industries such as 3C electronics, rail transportation, aerospace, and linear module guide rails.
Packaging & Shipping
•Highly Protective
•Structural Stability
•Environmentally Friendly and Recyclable
Professional Team
FAQ
1. What are the Payment Terms?
A: T/T, 40% initial payment when ordering, 60% balance payment before shipment.
2. What are your trade terms?
A: FOB, CFR, and CIF are all acceptable.
3. When is the delivery time?
A: For standard machines, we can prepare the machine within 30 days. Special machines may take longer. Place your order based on the delivery timeline we provide.
4. What is your minimum order quantity and warranty?
A: Our MOQ is one set, and we offer a one-year warranty.
5. How are the machines packaged?
A: The machines are securely packed in standard wooden cases.
6. How can I choose the most suitable machines?
A: Provide us with your specifications, and we will recommend the best model for you. Alternatively, you can select the exact model yourself.
You can also send us your product drawings, and we will choose the most suitable machines for you.

---
