Non Woven Machinery Double Cylinder Double Doffer Carding Machine for Insulation Material

Product Description

Product Description
This machine double cylinder double doffer fiber carding machine for non woven fabric. And it is for fully carding the fiber bat following opening and blending, then forming parallel or random web through doffer and random if required, which is then supplied to the next processes.
Main Technical Parameters

Model		YQ-1850-SSL
Working Width		1850mm
Capacity		100-450kg/h,Depends on the raw material
Diameter of Cylinder		Φ1230mm
Diameter of Doffer		Φ495mm
Diameter of Feeding Roller		Φ86
Diameter of Working Roller		Φ165mm
Diameter of Stripping Roller		Φ86mm
Diameter of Licker-in		Φ295mm
Diameter of Random Roller		Φ295mm
Fan Impeller		Aluminium
Power	Cylinder	18.5kw (Frequency conversion control)
	Doffer	2.2kw (Frequency conversion control)
	Feeding	1.5kw (Frequency conversion control)
	Working Roller	1.5kw (Frequency conversion control)
	Fan	4kw
Dimension		3700*2666*2000mm
Weight(kg)		6000

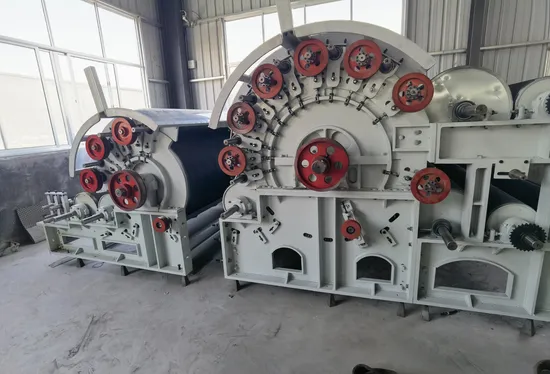

Product Display

Production workshop
Main Features
The machine adopts four-roller feeding structure, adapting to polyester, polypropylene and other chemical fibers also adapt to some natural fibers carded into the net. Cast iron frame with round wall plate, stable structure The sheet metal cover shell laser underfeed CNC bending, using closed shield, organic glass window, beautiful and generous, cover shell cylinder lift, convenient and safe. All transmission parts with phosphating anti-rust treatment, phosphating color uniform black, strong adhesion does not lose color. base 600mm high, 300H steel for the base; both sides of the anti-skid plate maintenance walking platform, convenient for daily maintenance and repair. With suction side fan and metal detection device. The bearings adopt domestic famous brand, Dongguan TR bearings (with shell) / Torrington bearings (rolling bearings) The roller shaft head is finely turned and finely ground, and the computer balancing machine does static/ dynamic balancing, controlling the mobilization within 0.03-0.05mm. Work rollers are controlled by separate motor, according to the difference of celing and raw material, adjust the speed of work rollers, so that the fiber gets the best combing. Motor adopts red flag motor, reducer adopts Shengbang reducer, factory direct supply, quality assurance. Packaging & Shipping
Certifications
FAQ
(1) Q: Are you a manufacturer or agency?
A: We are a professional manufacturer specialized in producing textile machine for more than 20 years, the production ability is up to 800 sets/ mouth. We have our own International Trade Department, so that we can better understand customer's needs and offer a reasonable price.

(2) Q: Is the price offered changeable?
A: Of course, we offer reasonable price and the price is changeable according to purchasing amount. cchanchangeable according to purchasing amount.

(3) Q: How about the quality?
A:The main subassembly are supplied by large companies from Japan, south Korea or German. Key parts are research and design by ourselves.

(4) Q: How about the after-sale service system?
A: Our engineers available to service overseas to provide professional technical support.

(5) Q: Are you available for on-the-spot invitation?
A: Of course we do welcome to visiting our company and have a face-to-face communication to advance mutual business.

---
