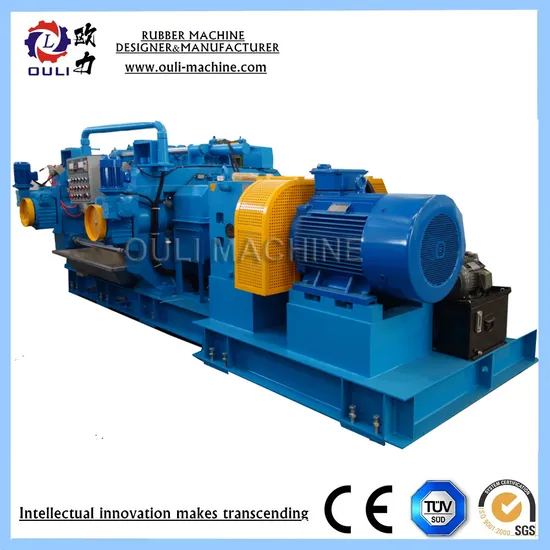

Two Roll Open Mixing Mill Equipped with Automatic Stock Blender

Product Description

Automatic stock blender Equipped on Two- Roll Open Mixing Mill

1 . COMPANY INFORMATION
1-1 OULI COMPANY
Established in 1997 , Qingdao Ouli machine CO., LTD was located in Huangdao District, the west coast of Qingdao city,Shandong province ,China.
Branches in Suzhou , Dalian etc were created in 2012 and 2015 .
We are specialized in rubber machinery designing,manufacturing and maintenance works
OULI main products:
Rubber mixing equipment / Rubber vulcanizing machine / Automatic and semi-automatic waste tire recycling equipment / Rubber calendaring machine / Rubber extruding equipment / Reclaimed rubber production line
Our machines have been exported to more than 20 countries such as America, Canada, Australia, Southeast Asia, Middle East,Brazil .
We warmly welcome customers visit factory and technology discussion is highly appreciated .
1-2 OULI workshop
2. PRODUCT INTRODUCTION
2-1. Basic introduction of two-roll open mixing mill with block blender
two roll mixing mill is used for mixing and kneading raw rubber, synthetic rubber, thermoplastics or E.V.A.with chemicals into final materials. The block blender make the machine recycling mix rubber automaticlly.
The final materials can be fed to calender, hot presses or other processing machine for making rubber or plastic products.
2-2. Features of two-roll open mixing mill
FOR MORE INFORMATION : oulimachine.en.made-in-china.com
2-3. Parameter of open mixing mill

Parameter/model		XK-160	XK-250	XK-360	XK-400	XK-450	XK-560	XK-610
Roll (mm)		160	250	360	400	450	560	610
Roll working length (mm)		320	620	900	1000	1200	1530	2000
Capacity (kg/batch)		4	15	30	40	55	90	150
Front roll speed (m/min)		10	16.96	16.22	18.78	21.1	25.8	28.4
Roll speed ratio		1:1.21	1:1.08	1:1.22	1:1.17	1:1.17	1:1.17	1:1.18
Motor power (kw)		7.5	22	37	45	55	90/110	160
Size (mm)	Length	1104	3230	4140	4578	5035	7100	7240
	Width	678	1166	1574	1755	1808	2438	3872
	Height	1258	1590	1800	1805	1835	1600	1840
Weight (KG)		1000	3150	6892	8000	12000	20000	26197

2-4. Configuration of two -roll open mixing mill
1. Rolls: Chilled Alloy Cast Iron rolls with surface hardness 68~72HS. The Rolls are mirror finished & polished, duly grinded and are hollowed for cooling or heating.
2. Roll Clearance Adjusting Unit: Nip adjustment at two roller ends is done manually using two separate screws attached to the brass housing body.
3. Roll Cooling: Universal Rotary joints with inner Spray pipes with Hoses and Headers. Piping is complete up to supply pipe terminal.
4. Journal Bearing Housing: Heavy Duty Steel Casting Housing fitted with Anti Friction Roller Bearings.
5. Lubrication: Full Automatic Grease lubrication pump for Anti Friction Roller Bearings fitted in dust sealed housing.

6. Stand Frame & Apron: Heavy Duty Steel Casting.
7. Gearbox: Hard-tooth reduction gearbox, GuoMao brand.
8. Base Frame: Common base frame heavy duty, Steel channel and MS plate fabricated accurately machined on which whole machine with Gearbox and motor are fitted.
9. Electric Panel: Star Delta Electric operating panel with Auto Reversing, Voltmeter, Ampere, Overload protection relay, 3 Phase Indicator and Emergency Stop Switch.
2-5. Sample pictures of open mixing mill
3. CUSTOMER FEEDBACK
4. EXHIBITION
5. PACKAGE AND DELIVERY
6. FAQ
Q1:Why choose Us?
1.More than 20 years history of OULI MACHINE factory.
6-8 years foreign sales experience staff, more efficiency and professional.
Engineers oversea service more than 20 countries .
2.ISO:9001,CE,BV certification approval
3.Service timely, Promise to give solution within 12 hours,Guarantee customer trouble free.
4.Short delivery date, No delay. Accept urgent order for prompt shipment.
Q2:What about delivery date?
It will be according to the quantity of machines. Normally machines will be shipment within 20-30 days after get deposit, No delay.
Accept urgent order for prompt shipment.
Q3:What's the warranty statement?
OULI MACHINE warrants all the products manufactured by OULI MACHINE to free from defects in material and workmanship Under normal use of a period of 12 months or 36months after the date of the original purchase price if repair or replacement is not possible of practical, OULI MACHINE warranty covers ONLY the product itself.
OULI MACHINE will assume no liability for labor costs, installation costs, or other losses.
Your warranty rights will be honored
Only when the product has been installed and used properly as deemed by OULI MACHINE,OULIMACHINE will not repair products damaged by improper use or faulty installation.
Q4:What about OULI oversea service ?
OULI will arrange oversea setting up and training works if customer need .
Customer should pay for accommodation , tickets and salary .
Meanwhile OULI has branches in different areas like north America , Southeast Asia , Brazil etc , etc .

---
