4, 8, 16 Zones Fire Warning Fire Alarm Control Panel System

Product Description

4, 8, 16 Zones Fire Warning Fire Alarm Control Panel System
Description: 1. The fire alarm control panels (4 Zones, 8 Zones, and 16 Zones) provide all of the sophisticated features required of a leading edge conventional fire alarm system along with the simple operation and efficient installation methods demanded by both installers and building users.
2. The panel can be wall mounted and the generously sized metal back box allows ample space for rear or top cable entries.
3. A comprehensive range of auxiliary devices is available to operate with the fire control panels including optical, ionization, photoelectric, photoelectric-thermal and heat detectors.
4. Each of the system components has been specifically designed to operate as part of the system. This provides assurance that the control panel, smoke detectors, interface devices and the ancillary components are all fully compatible with one another and that the full range of system functionality is supported by each device.
Features:
♦ 4, 8,16 Class B Initiating Device Circuits (IDCs).
♦ Four Class B NotificationAppliance Circuits (NACs).
♦ One Form-A Alarm Relay.
♦ One Form-A Fault Relay.
♦ One Form-A Supervisory Relay.
♦ 3.0 amps of system power.
♦ Max 30 conventional detectors in one zone.
♦ Auto/Manual mode setting enable.
♦ Each Zone can be disabled.
♦ Sound output can be disabled.
♦ Manual active sound output enabled.
♦ Able to report short and broken circuit of detection zones.
♦ Designed with standby batteries and spaceprovision for two sealed lead-acid batteries.
♦ Evacuate,Testing and disable functions.
♦ Remote reset and silence alarm functions.

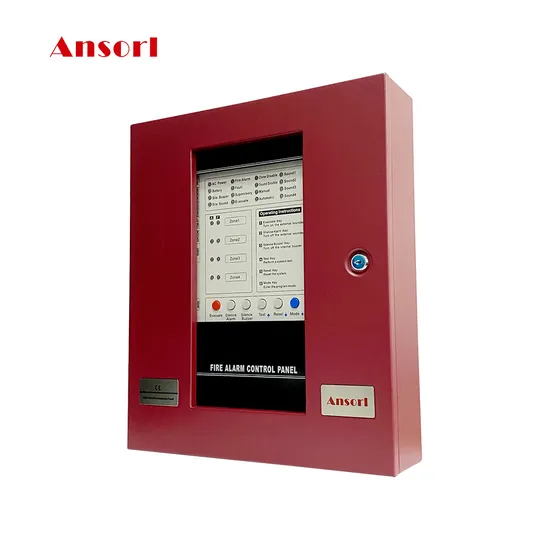

Panel Appreance: Panel Dimension:

Panel AC Connection: Panel DC Connection:

Parameters:

Product Name	4, 8, 16 Zone Capacity Fire Alarm System for Safety
Main Power Supply	90 to 270VAC, 50Hz
Backup Battery	2 pcs lead acid battery
Power Supply Rating	3 Amps @ 24VDC
Initiating Device Circuits	4 - 16 detection zones
Notification Appliance Circuits	1 - 4 sounder lines
Zone Capacity	25 - 30 Detectors
Disabled Function	Yes
Emergency Evacuate Function	Yes
Relay Output	Fire & Fault & Supervisory
Relay Contact Rating	2A & 30VAC, resistive
Mode Selection	Auto & Manual
Standard	EN54-2 & EN54-4
Dimension	440x370x100 mm
Application	Office, factory, warehouse, apartment, hotel, bank, supermarket, shopping mall, school, hospital etc.

Pictures:
Related Models:
* AS-SD102: Conventional 2 wire smoke detector
* AS-SD202: Conventional smoke detector with relay output
* AS-HD105: Conventional heat detector
* AS-SHD109: Conventional smoke and heat detector
* AS-IRBD: Reflective infrared Beam Smoke Detector
* AS-MCP-2D: Conventional manual call point
* AS-SSG-03: Conventional strobe sounder
* AS-BELL: Conventional alarm bell
* AS-E301-UV: Explosion proof ultrovialet flame detector
* AS-CRT: Conventional repeater panel
Wiring Diagram:
Factory Corners
Workshop and Warehouse
Mass Production
Package and Shipment
Certificates
Who We Are ?
ANSORL TECHNOLOGY LTD is a building automatic control system and fire alarm system provider. Over the past years, We have always been dedicated to serving the diverse needs of our customers. Although we started out as a tiny engineering and manufacturing company in China and have grown into a global player in the international safety market, Ansorl continues to work hard to earn your trust and retain your confidence in our product line.
We focuse on providing advanced buidling automatic control system and fire alarm, fire protection system. Ansorl works harder to tailor our solutions to meet your needs.
Ansorl is an ISO 9001:2008 certified manufacturer with number of testing facilities. We are also planning to expand our manufacturing and testing facilities in China to ensure that our products and manufacturing practices continue to meet the highest standards.
We invite you to get to know Ansorl better. Experience the best fire alam technology and solution. We are convinced that you will find Ansorl superior to any other detector company in China. You'll see it in our facilities, in our people, and in the products that Ansorl makes. It's our uncommon commitment to excellence and quality, and to the automation and productivity of our customers.
What We Have ? * Conventional and Addressable fire control panel
* Smoke, heat, gas, flame, beam detector
* Manual call point and pull station
* Audio/visual alarm, strobe horn
* Standalone battery operated fire alarm detectors
* Explosion-proof and weather-proof fire alarm devices
* FM200/co2 gas extinguishing control system
* Other fire safety products
Why Choose Us ? * Prompt Response.
* Standard Quality Control System.
* Sample & Customized Order Can Be Supported.
* Independant R&D / Manufacturing / Customer Service / Marketing Dept.
* Direct Control On Materials, Production Status, Quality Checking.
* Fast Delivery Time for Standard Products.
* State-of-the-art Technology and Models.
* Waranty Guarrentee.
FAQ:
Are you manufacturer ?
Yes, our associated factory has more than 10 years production management experience in fire alarm industry.
Do you provide samples ?
Yes, sample for quality test is understandable, tell us your interested models, we will prepare for your study.
How's your product quality ?
Our QC team responsible for the whole quality supervision during production and inspect the goods before shipment.
We've achieved the third party certificates ISO, CE, LPCB etc.
Where are your markets ?
Our customers are from worldwide, covering south/east Asia, south/east Europe, middle east, central/south America and the whole Africa etc.
What kind of shipping methods you choose ?
By international express (DHL, FedEx, UPS, TNT, EMS etc).
By train / by truck / by air / by sea.
How long can I get the goods ?
Normally it takes 3-8 working days. For customized items or bulk orders, it takes more than 15 working days.
Do you provide warranty ?
We provide 12 months warranty, if any item to be found in quality defects, we will provide replacement or repair services.
